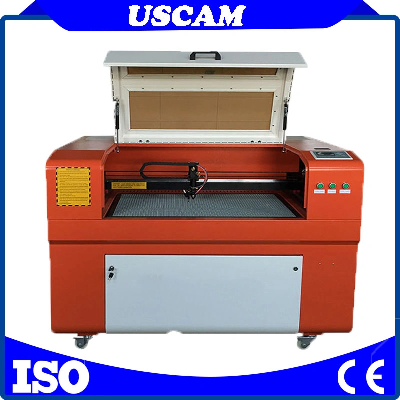

CO2 CNC Laser Cutting Engraving Machine for Wood Acrylic Engraver

This co2 laser engraving machine can use for cutting metal&nonmetal meterial.Metal materail: This laser cutting machine can cut carbon steel, stainless steel. According to different metalmaterials and thickness, we will adjust the pluse width, current, frequency, cutting speed.Non-metallic materails : This laser cutting machine also can cut wood, bamboo, jade articale, stone(onlycan engraving), organic glass, crystal(only can engraving), rubber, plastic, etc. Parameter  of co2 laser machine                                                                        Name:                                                co2 laser cutting machine 6090                      Processing area900mm*600mm (3feet*2feet)Laser power80/100/130/150/180WLaser type:Sealed Co2 laser tubeResetting positioning accuracy:±0.01mmCompatible Software:Laser cut 5.3, CorelDraw, AutoCAD, PhotoshopWhole machine size:1420mm*1020mm*1150mmEngraving speed1-6000mm/minCutting speed1-1000mm/minCutting thickness0-20 mm acrylic (others determined by materials)Resolution ratio≤0.0125mmPosition system:Red dotInterface:USBMinimum shaping characterletter 0.8mm, Chinese 2mmSupport graphic formatDST, PLT, BMP, DXFGross power1000WDriving mode:DC0.8A 24V stepper motorCooling mode:Circulation water coolingWorking voltage:AC 110 - 220V±10%, 50 - 60Hz or depend on customerOperating temperature0-45COperating humidity:5-95%Driving systemstepperOption:Up and down table, rotary attachmentPacking:wooden boxGuarantee time:2 years, laser tube 10 monthsOption:Rotary attachment for column materialsOperation:Video to tell customer how to operate the machineNet weight:190KGS before package, 240KGS after package Features  of co2 laser cutting engraving machine                                             1.Taiwan HIWIN square linear guide rail installed on X&Y axis, make sure the works stably and precisely.2.The professional manufacturers adoptes square tube framework in China, with more than 40% higherfuselage strength  than iron sheet stucture. This design prevents the machine from quivering, resonanceand distortion during long term work.3. New-style high-efficiency laser tube is adopted. Laser beam is more stable than the traditional type.4.Red dot position system is added in standard configuration,contributing to simple and precise working position.5.Humanized and modern appearance showing RECI's consistent humanity idear, making operation 6.Advanced DSP control system,with professional motion control chip, has the function of consecutivelyhigh-speed curve cutting and the shortest path    selection, which largely improves your working efficiency.7.USB offline control system makes the operation more convenient and faster.8.Automatic up-down table can be chosen for thick materials and high objects Application and Sample of Co2 Laser Machine                                                 This type machine is a kind of laser engraving machine system equipped with Co2 laser tube,it is used toengrave on acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather,cloth, double-color board, etc. nonmetal materials . Max Cutting Thickness of Co2 Laser with Different Power                             Material/Max cut thickness(mm)40w60w 80w100w130w150wAcrylic3812152030MDF24791320Wood358101520PVC24791318Color-board23681218Rubber2478910Leather148101315Cottom3612152025Paper348(30 pcs)101215Plastic147101010ABS bord3812152025Paper board25681218Metal     2mm(with Oxygen)Spare Parts Supports                                                                                             We provide all replacement parts for all machines we sold, if you have a parts that break beyond warrantyperiod, you could order it directly from us at reasonable prices.We would post the new parts with step by step instructions in PDF format on how to replace the parts to you.After Service                                                                                                           1.1.5years quality guaranty, the machine with main parts(excluding the consumables) shall bechanged free of charge if there is any problem during the warranty period.      2.Lifetime maintenance free of charge.                   3.Free training course at our plant.    4.We will provide the consumable parts at an agency price when you need replacement.5.24 hours on line service each day, free technical support.       6.Machine has been adjusted before delivery7.Our staff can be sent to your company to install or adjust if necessary.Packing and shipping                                                                                            1. Standard plywood case, its compressive strength and bearing quality is better.2. the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.3. when importing, the plywood case is with fumigation-free, the procedure is simple.4. Delivery Detail: within 7-15 days after received your payment About Payment
