High Precision Stainless Steel Aluminum Copper Pipe Cutter Tube Cutting Machine

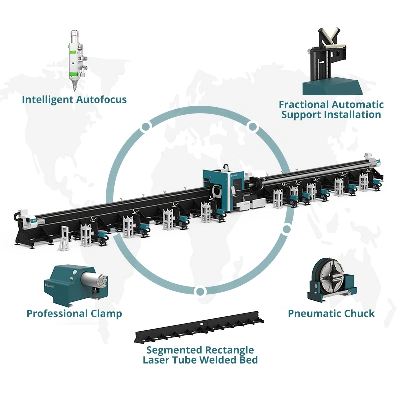

  ParametersModelLX83TIVMax.outside diameter of round tubes(mm)20-210(Customized to 350)Max Side length of square tube154Pipe thicknessDepends on the powerCutting speedCutting speed: Max 0.8s/cut(Depending on material thickness)"y" axis single feeding length1200mm"z" axis adjustment range65mm"w" axis adjustment range360°Machine repeat positioning accuracy±0.05mm/1000mmMachine positioning accuracy±0.1mmMachine idle speed120m/minMaximum acceleration1.0GElectricity demand380V 50Hz(customizable)Cutting accuracy±0.1mmPower1000-15000w(Optional)Accuracy±0.1mmMax . raw material length (mm)≤12200Max. finished part length (mm)1200Pipe remain length (mm)180Multi-funtional cuttingMitre cut ,rectangular ,slot,square, circular ,cold mouth ,special profilesMain PartsSegmented rectangular laser tube welding bed   •Great rigidity•High precision•No deformation during the life cycle•Welded aluminum chuck plate•High-precision process molding•Excellent dynamic performancePneumatic Chuck Holding Device   Pneumatic clamp design on both sides, can automatically adjust the center, adjustable diagonal range 20-220mm (320/350) optionalIntelligent Auto Focus   ·Efficient CoolingBoth the collimating lens and the focusing lens group are cooling structures, and the cooling air nozzle is added at the same time, which effectively protects the nozzle and ceramic body and prolongs the working time.·Chasing ApertureThrough the aperture of 35 mm, the interference of stray light is effectively reduced.·Auto focusAuto focus, reduce human interference, focus speed 10m/min, repeatability 50 microns 25mm carbon steel plate pre-punching time
