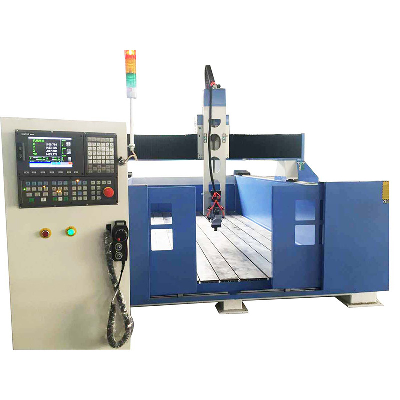

Machine photoConfiguration1.Welded thick steel bed structure, Taiwan HIWIN square guide rails2. 4.5KW or 6KW air cooling spindle3. Servo motors, also can optional stepper motor and drivers4.Ncstudio control system, can be optional DSP control system and Taiwan SYNTEC control system5.Dust cover for ptecting guide rails and rack6.Shenzhen SUNFAR inverter7.2 collects and 15 pieces cutters8.exporting plywood package Specification modelcar foam mould machine 1325the size can be optionalX Y working area1300mm*2500mmby your requirementZ working area500mm500mmsurroundings for softwarewindows98/2000xpwindows98/2000xpresolution0.005mm0.005mmreposition accuracy0.05mm0.05mmtable size1480mm*3100mm max running speed20m/min20m/minmax working speed10m/min10m/mincommand G code*.u00*.mmg*.pltG code*.u00*.mmg*.pltpower( not include the spindle)2000w2000wspindle power3.0kw-6.0kw3.0kw-6.0kwwork modestepper motorstepper motorvoltageAC380V/50HZAC380V/50HZNote: optional machine parts1.The spindle can be water-cooling or air-cooling, single head or multi-head, and its power can be changed according to the material.(3.0kw, 3.2kw, 4.5kw, 5.5kw etc.) China brand HQD or Italy HSD spindle.2. The operation system can be DSP or NC studio system, or MACH3 control system3. Table surface: Aluminum T-slot table with clamps or vacuum adsorption table with vacuum pumpIf you need double use, we also can produce T-slot and vacuum table together4. The motor can be stepper or servo motor, or hybrid servo motor5. You can also add dust collector, dust cover, rotary axis, auto oiling lubricating system6. Other customerized parts. cnc router machine manufacturing process:1. The engineers design the machine according to your needs.2. The purchasing department carefully select and buy the machine parts.3. The skilled workers make the machine.4. The quanlity control department supervise the whole manufacture process.Sample photos:CE certification/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
