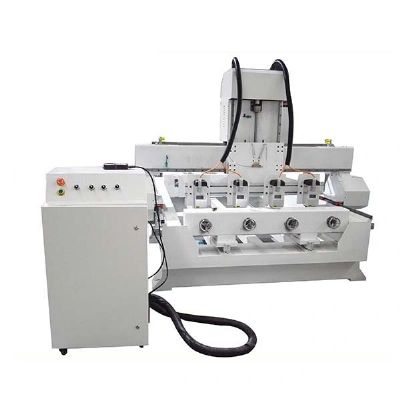

4 Axis Rotary 8 Spindle Cylinder Wood CNC Engraving Router Machine

Product Description1.Four axis machine, with 4 Rotaries and 4 spindles, which can work at the same time or independently, and every one's max effective working area is 300mm(diameter) by 1500mm(length).2. With Scanner or designed photo, it can do any 3D Engraving and 2D Engraving .3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.4.Has the 4th rotary which is used for engraving cylinder workpiece. 5.Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/ Castmate/Wentai etc.6.Has the function of re-carving after break point and power failure7. Adopting stepper motor and driver, can be optional China or Japanese servo motors  Main Configuration 1.Welded steel bed structure2.Taiwan HIWIN square guide rails for three axises, Rack transmission for X and Y axis, Ball screw for Z axis3.2.2KW water cooling spindle with water pump4.Shenzhen SUNFAR inverter5.MACH3 control system or 4 axis DSP/Ncstudio control system, optional by you6.Rotary attachment multi-pieces7.Oil lubrating system8.450B stepper motor Chuangwei brand and 860H driver Leadshine brand9.8 collects and 15 pieces cutters  Thick steel welded bed structure with thick gantry bar 4.5kw air cooling spindle four pieces, also can be optional water cooling spindles 4 pieces rotaries attachment SUNFAR, BEST, FULING, etc brands inverters Auto oil lubricating system 4 axis A18 version DSP control system Leadshine brand easy servo motor and driver, etc Product Parameters ModelZK 1325 CNC routerX,Y,Z Working Area1300*2500*300mmX,Y,Z Traveling Positioning Accuracy±0.03/300mmX,Y,Z repositioning Positioning Accuracy±0.02mmLathe StructureThick wall square tubes welding bed X StructureTaiwan HIWIN square guide railsY Structure Taiwan HIWIN square guide railsZ StructureTaiwan  HIWIN square guide railsMax.Speed0-30000mm/minMax.Working Speed0-25000mm/minSpindle  2.2KW water cooling spindle Spindle Speed0-24000RPMWorking Modestepper motor and driver Working Voltage380V/3 phase 50HZCommand CodeG code(*uoo,*nc,*mmg, *plt)Operating SystemMach3 control system optional DSP or NcstudioInterface USBX,Y Working Delicacy
