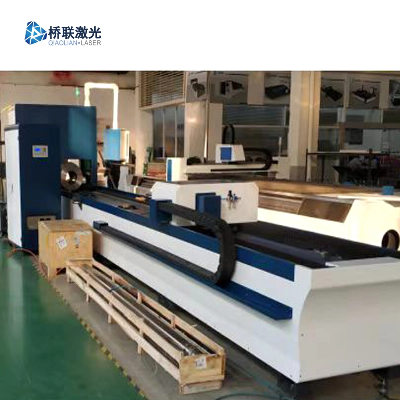

high speed laser metal tube cutter machine manufacturer with OEM serviceProduct Description1. 3-chuck Clamping Technology2.Real 0 tailing without tube length restriction3.Cut 12000mm entire tube at most4.Maximum pipe diameter 4505.Maximize the weight of single tube6.Cover can be optional.7.Automatic uploading can be optional8.3D cutting function can be optionalII. Advantages of tube laser cutting machine1.Multi-point Supporting for Heavy TubesTubes are usually clamped and supported by three chucks concurrently. Any tube deformation can be automatically corrected to keep cutting precision high and cutting products of uniform size.2.EtherCAT bus systemFSCUT5000 series is EtherCAT bus system specially designed for fiber laser pipe cutting machine. Work with TubesT 3D nesting software, it will achieve most efficiency and minimum waste. 3.Auto Focus tube Laser Cutting HeadThe product is equipped with slender TRA components and slender nozzles, which can adapt to any complex tube cutting and cutting product conditions, and has a built-in motor drive unit, which drives the focusing mirror to automatically change its position within a certain range through a linear mechanism. It can realize continuous focusing, complete rapid perforation and automatic cutting of pipes of different thicknesses and materials; the optimized optical and water-cooled design enables the laser head to work continuously and stably for a long time. 4.Perform Well in Tube CuttingCut max. 12000mm entire tubeMax. cutting range of round tube Φ20-450mmAlso cut profiles like channel, angle and I-shaped steel etc. 5.Imported Parts, Precision Guaranteed Equipped with dualhigh-powered servo motors and drivers which from GermanCore transmission parts like speed reducer and gears are imported from JapanHigh-precision racks,guide rails and ball screws are produced by world-famous brands. 6. Quality Control SystemRigorous quality inspection of the assembly process, perfect quality system, high-precision inspection and inspection equipment: laser interferometer, laser collimator and three-coordinate projector, to ensure that each delivered customer equipment can meet the company's factory quality standards; Product ParametersIII. Parameters of tube laser cutting machineModelJCT3612JCT3616JCT3622JCT3628JCT3632JCT3635JCT3645Power1000W-12000WMin.Dia(mm)20Max.Dia(mm)120160220280320350450Tube length(mm)3000 / 6000 / 9000 / 12000Maximum revolutions of chuck(RPM)80-120X/Y-axis Positioning Accuracy±0.05mmX/Y-axis Repositioning Accuracy±0.03mmPositioning speed90m/minMax. Acceleration1G *The above data are for reference only, subject to the actual product!IV. Customers site V. Cutting samples Company ProfileCertificationsOther Related products Single table laser cutting machine Gantry laser cutting machine Sheet &Tube laser cutting machine CNC Plasma cutting machine Fiber laser welding machine Exchange table laser cutting machine /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
