Factory Directly Selling Kcv-1250X3200 V Grooving Machine

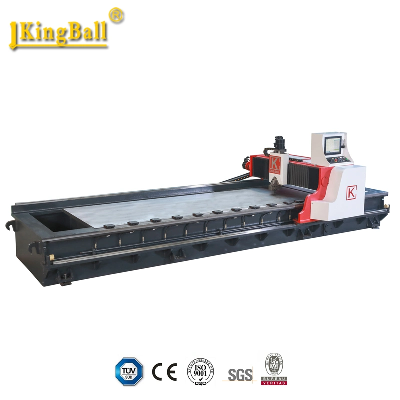

factory directly selling KCV-1250X3200 v grooving machine 1.Function intructionThis equipment is full CNC gantry grooving  machine, it adopts advanced CNC system with novel design.It has the characteristics of high processing accuracy, simple operation, no noise and no vibration. This machine tool is used to process V-grooves, U-grooves and other irregular grooves on sheet metal parts, and is especially suitable for V-groove processing before sheet metal parts are bent,Including stainless steel plates, aluminum plates, aluminum-plastic plates, copper plates, iron plates, bakelite boards, acrylic plates and other special plates.  2.Performance and characteristicsLM type CNC gantry type metal sheet slotting machine is an upgraded product researched and developed by our company's researchers based on South Korea's gantry type metal sheet slotting machine. This machine has all the performance of traditional gantry models, which fully solves a series of problems encountered by customers in the actual operation process. This equipment is a 4-axis full-servo design, which has made an essential breakthrough on the basis of all domestic and foreign gantry slotting products.The equipment is welded with steel plates, which has strong shock resistance, eliminates internal stress through vibration aging, has good stability, and is rusted by sandblasting on the machine, and sprayed with anti-rust paint. The whole machine is processed on a CNC floor-type boring and milling machine, which ensures the parallelism and perpendicularity of each mounting surface.The equipment adopts a platform-type double guide rail structure, the beam runs more smoothly, and the blade holder processes the plate by moving left and right, back and forth, which can ensure the accuracy of each part of the groove depth.The equipment adopts the processing technology of three forming knives, which greatly reduces the iron scraps generated during processing, and greatly improves the accuracy of processing compared with the traditional five knives. Because the bottom of the groove processed by the five knives may produce multiple bottom lines.The equipment adopts full pneumatic clamping and pressing, and the work is fast, so that the processed product has no clamping marks, creasing marks, and the entire process is followed by cooling spray.The equipment uses high-speed and precise gear racks, ball screws with large pitches, and high-precision, linear guides. The main shaft system is driven by a high torque servo motor and an imported star reducer. Makes the tool holder more stable and fast when processing the workpiece. The gantry of this equipment uses 5 mute slides.The equipment workbench uses a high-strength 45 # plate as the base surface, so that the workbench is not easily worn when processing the workpiece.This equipment has a self-planing function.The equipment adopts CNC numerical control. The operator is easy to learn and understand, and the positioning is accurate.Equipment clamping and pressing are all pneumatically controlled, making the machine more energy-saving and environmentally friendly.The overall shape of the equipment is simple, generous and nice. It adopts the frame structure setting, which is in line with the operating habits of various technical personnel, so that the operators can fully meet the production and technical requirements during work.3.Main technical parameters of the equipment  No.ITEM KCV-1250X32001Cutting length3200mm2Cutting width1250mm3Sheet thickness0.6-4mm4X axis Forward-Cutting speed60m/ min5X axis Backward speed80m/ min6Y axis moving speed30 m/min7Z axis moving speed25 m/min8Y1 axis accuracy±0.039Z axis accuracy±0.0210X axis controlAC frequency driver control, Brand Delta11Y,Z axis controlServo driver control, Brand Mitsubishi12Linear guide and ball screwTaiwan HIWIN13BearingSKF14X axis motor power5.5KW15Y/Y1/Z axis motor power1.0/ 1.0 /1.0 KW16Oil pump4KW17Control systemMitsubishi PLC 18Clamping deviceHydraulic19CableMain Cable : Germany IGUS20Machine dimension5400x2150x1580(mm)21Machine weight7.2 TONRemark:  X axis→ Controlling Beam Movement            Y1 axis→Control the blade holder forward and backward movement   Y2 axis→Control the mobile clamp forward and backward movement       Z axis→Control blade holder up and down movement4.Equipment main configurationNo.itembrand1CNC systemMitsubishi2Pneumatic solenoid valveAirTAC3Pneumatic two-pieceAirTAC4servo driverMitsubishi5Servo motorMitsubishi6Star reducerAMDSK7PLCMitsubishi ,Japan8Single / bipolar air switchSchneider9AC contactor, thermal relaySchneider10Circuit breaker, buttonSchneider11Miniature relaySchneider12Machine tool flexible power cableIgus13Proximity switchOMRON14Alloy knifeTaeguTec15Linear GuideHIWIN16High-precision ball screwHIWIN17Precision gear rackFengmao18Angular contact ball bearingsNSK19Double diaphragm couplingKS5.Structure IntroductionKCV gantry series CNC metal grooving  machine adopts frame structure, the whole machine has compact
