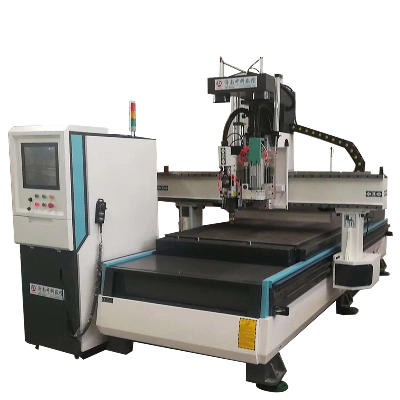

Furniture Making Wood CNC Router Machine with Drilling Block

Features:1 TaiWan high precision and long life time, rack and pinion transmission, high speed.2TaiWan SYNTEC servo motor driver working mode3 TaiWan SYNTEC control system, easy to operate.4 5.5kw high absorbtion vaucum, reaching 230cube/hour. it"s more stable when working.5 we offer the video for traning , easy to operate.6 Imported Italy HSD air cooling spindle8 Carousel turning plate for changing 8-12cutters automatically9 The Italy HSD hole drilling can improve the effeciency and precision.10.Double working table,with high effective.Technical parameters  ModelM-25X,Y,Z axis working area1300*2500*300mmWhole structureWelded Steel gantry structureTable surfacevacuum adsorption table X,Y,Z structureTaiwan HIWIN Square linear guide rail with 30mm diameterX,Y structureRack and pinion transmission, high speed and more stable;Y -double motor driveZ structureImported ball screw, high precisionMax. idling speed60m/minMax. working speed30m/minRepositioning Accuracy±0.05mmX Y Z working Accuracy
