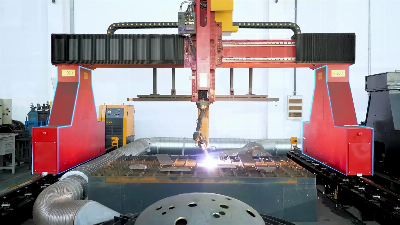

3D Vision Parts Bevel Cutting Machine

  3D CNC cutting machineProduct DescriptionSpecial parameters:Plate thickness5mm-100mmGroove typeV type, Y type, X type, K typeCutting accuracyblunt edge accuracy: ± 1.0mm, bevel Angle accuracy: ±2.0°Technical Parameter:cutout typeCenter hole, eccentric vertical hole, eccentric normal holebevel typeStraight mouth, V type, Y type, X type, K type, the maximum bevel angle is 45°cutting accuracyHole size accuracy: ±1.0 mm; Bevel angle accuracy: ±2.0°head typeBall head (HHA), oval head (EHA, EHB), dish head (THA, THB)head size300-6000mm (can be customized according to customer needs)CRRC QISHUYAN is active in the cutting business already more than 10 years.Produce your parts with already drilled holes, countersinks,  threads, or milled openings and weld preps: supplementary machining technologies turn cutting machines into multifunctional production centers!We are delighted that many of our ideas and visions find  appreciation  by the industry to establish automated bevel cutting as the processparts, not only in plasma but also for laser and the last 5 years over 50% of machines were supplied with bevel cutting technologies.The basic step in production of pressure vessels is precise cutting of dished ends. Automating this process to a high degree while delivering high-precision contours without the need of additional surface finishing provides manufacturers with a clear advantage and saves them a lot of valuable time.Our philosophy is to deliver machines that are not isolated tools but form an organic part of the production workflow by exchanging information, predicting break-downs and automatic the material flow throughout  the customers production cycle. For this we are taking our digital environment to the next level: the new generation of  control system highlights digitalization and comes with tools and applications that enable a seamless integration of our machinery into Smart Factory solutions.  Detailed Photos Our Advantages We have world-class manufacturing equipment, processes like casting, forging,welding, heat treatment, machining, gearing, can all be done in house.CRRC QSYRI engages in the research of casting processes and material technologies, along with the development and manufacture of various castings, including cast steel, cast iron, nonferrous metals, high-temperature alloys, stainless steel and cobalt-base alloys, of which high-phosphorous brake shoe, Grade B steel, Grade B+ steel, Grade C steel and Grade E steel, and their manufacturing technologies have been popularized successfully in railway industry.Low-pressure casting Centrifugal casting Metal mold casting Green sand casting Resin sand casting Pre-coated sand casting Sodium silicate sand casting Precision investment casting Bimetal liner preparation MAGMA software for solidification simulation Cast steel, cast iron, aluminum alloy and magnesium alloy development.The company is also engaged in the R&D of precision forging, heat treatment and product. Its forgings for large-capacity dampers, ND5 major-minor connecting rods, axle of 2000mm, brake disc and gear have been used widely in railway industry. Its forgings of high temperature alloy turbine blade has been used for gas turbine in war ships. Its valve body forgings have been used for petroleum industry. The company owns an internationally advanced electric screw press with a maximum pressure of 22,000 t.Forging CAD/CAEControlled atmosphere heat treatment Precision forging of nonferrous,ferrous metals, stainless steel, high temperature alloy, titanium alloyThe company involves in the R& D of various heat treatment processes and quenching mediums, including cemented quenching, carbon-nitriding, induction quenching and tufftriding. The company operates internationally advanced pit-type and box-type carburizing furnace production lines, as well as quenching press and induction quenching machine production lines introduced from Germany, and keeps ahead in the country in terms of gear heat treatment technology.Controlled atmosphere carburizationSalt bath tuffnitriding Fast and deep ion nitriding Medium & high-frequency quenching and equipment design Heat treatment deformation control.The company is devoted to the R&D of welding processes and equipment for stainless steel, aluminum alloy and alloy steel. The company is equipped with advanced welding and cutting equipment including longitudinal sheet welding machines, NC air plasma cutters, Miller aluminum alloy welding machines, LVD NC sheet shearing and bending machines, large-sized vacuum brazing furnace, and has developed and manufactured aluminum air reservoirs, water tank, battery box, water-cooled radiators.The company is also dedicated to the R & D of surface repairing and hardening technologies for large-sized components with flame-spraying, plasma spraying and electrobrush-plating techniques. Its Miller plasma spraying system can produce transferred coatings of metals, alloys and ceramics.Flame spraying, arc spraying, plasma sp
