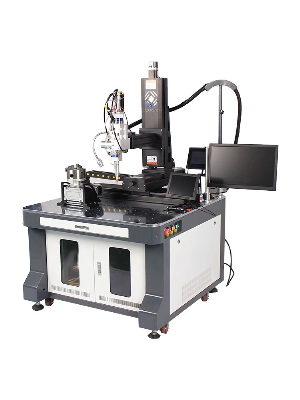

Platform Automatic Laser Welding Machine Hardware Tools Sensor Instrumentation

technical specificationCH1500CH2000               Maximum laser power1500W2000WOptical maser wavelength1080nm±5nm1080nm±5nm                Fiber output quantity                          Route 1                                            Route 1Depth of field0.2mm-1.5mm0.2mm-2.5mm                      Overall power4KW5.5KWVoltage inputAC220V+10%/3P+PEAC220V+10%/3P+PEType of coolingWater coolingWater cooling                    Optical fiber typeQBHQBHFiber diameter50um50um                    Number of axlesaxes can be customizedaxes can be customizedEquipment description: Using Mosen's latest control system, it is more stable, easier and more open to software operation, and can realize arbitrary trajectory programming of points, circles, straight lines, elliptic arcs, squares and other planes. Fully enclosed module with shock-proof design, equipped with high-precision guide screw, positioning accuracy 0.02mm, with servo motor responsive, automatic movement for welding. Customized multi-axis platform, to achieve 3D space arbitrary welding trajectory requirements, high customization. High production efficiency, fast welding speed, automatic mass production can be achieved. Hd CCD display, monitoring the welding process to ensure welding quality, intelligent software interface, easy parameter adjustment, save properly one-click start. The use of electronic hand wheel to achieve manual point function, adjust any axis direction, convenient and accurate. The table surface of the whole machine is made of thick aluminum plate, and multiple positioning holes on the top help to locate.Details:Sample picture:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
