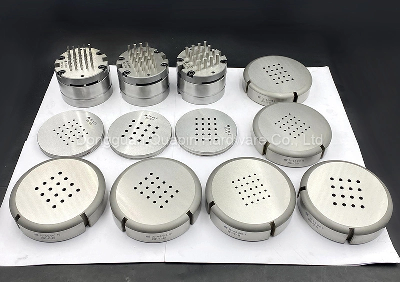

Factory Direct Turret Punch Tooling Cluster Die Thick Turret Forming

Product DescriptionMaterialPunch-body SKH51, Die DC53Heat treatmentHRC 60°-  62°Hits before regrinding ( for stainless steel )About 300000 hitsHits before regrinding ( for mild steel )About 500000 hitsAvailable TruPunch Machines ModelAMADA AE2510NT, AMADA 357, TAILIFT HP2500, MATE Ultra system, Prima Power E5X, LFK T3, Accurpress E2000, JFY ET-300, YANGLI T30, YAWEI HPH-30, FINN-POWER, KOMATS, STRIPPIT, DATONG PTC-LX230Forming toolsExtrusion tapping Tool, Extrusion Tool, Louver tool, Lance and Form tool, Cluster tool, Countersink tool, Half-cut tool, Plane positioning point tool, Knockout tool, Emboss Continuous tool, Thread screw tool, Center Point tool, HexLock tool, Bridge thread tool, MultiBend tool, Card guide tool, Hinge tool, Multi scribe tool, Logo tool, Ground symbol tool, Roller Rib tool, Roller Offset tool, Roller Shear tool, Roller Pincher tool, Roller Deburr toolOptionCoating with TICN or TinDelivery time3 - 10 Days  Detailed PhotosForming effectNoticeThe space of holes must be over 3.2mm or 2 fime sheet thickness.The punching pitch must be bigger than hole size, otherwise will damage the die.The cluster tool has unitary structure and replacement insert structure, we can design tools according to customer request.Tools designed as full guide structure when punching holes smaller than 2.0mm.Must avoid repeat punching of same hole.The quanfity of punch holes depend on machine's pressure force.  Tooling orderingPlease provide the following information when you purchase:CNC punch brandCNC punch press modelCNC punch die station structureThick tower 85 / thick tower 90 / thick tower MATE / thin tower 140 / Murata / thick tower heavy load / bus machine mold series(Mold height series or the outer diameter of our production data)The plate material thickness or clearanceOrdering parts: The whole package (eg die / die / back plate, etc.)Mold Specifications Shape Size: B-RE 30*5 (OB, SQ, RE)You shoot online transactions, you must provide detailed consignee and address phone, whether urgent.For example 1:AE2510-NTThick Turret 85Gap+0.3Full setB-RE 30*5For example 2:CP1500Thick Turret 90Gap+0.25Punch AssemblyD-OB Φ10*50For example 3:EM2510NTI TypeGap+0.3Upper and lower tooling stripperI-RO Φ15For example 4:M2048TE114 / VulcanGap+0.3Upper and lower toolingG-SQ 62*62For example 5:Busbar ProcessingMachine BM303Copper plate 0.3Full setB-SQ 20*20We hope that through online activities, to give you a better product and convenient service experience! Have any mold questions, can consult us, we will help you solve the problem the first time!Tooling Quoted priceMold height series or the outer diameter of our production data.Table of recommended die clearance(reference values)NCT drive typeMaterial type / thickness0.81.01.52.02.53.03.23.5HydraulicCold-rolled mild steel0.15-0.200.20-0.250.20-0.250.40-0.500.50-0.630.60-0.750.64-0.800.70-0.88Aluminum0.15-0.160.15-0.200.23-0.300.30-0.400.38-0.500.45-0.600.48-0.640.53-0.70Stainless steel0.20-0.240.25-0.300.38-0.450.50-0.600.53-0.750.75-0.900.80-0.960.88-1.05MechanicalCold-rolled mild steel0.150.15-0.180.18-0.270.24-0.360.30-0.450.36-0.540.38-0.580.42-0.63Aluminum0.150.15-0.160.15-0.240.20-0.320.25-0.400.30-0.480.32-0.510.35-0.56Stainless steel0.15-0.180.15-0.220.21-0.330.28-0.440.35-0.550.42-0.660.45-0.700.49-0.77  4.04.55.05.56.00.80-1.000.90-1.131.00-1.251.10-1.381.20-1.500.60-0.800.68-0.900.75-1.000.83-1.100.90-1.201.00-1.201.13-1.35---0.48-0.720.54-0.810.60-0.900.66-0.990.72-1.080.40-0.640.45-0.720.50-0.800.55-0.880.60-0.960.56-0.880.63-0.99---Material IntroductionPunch body material: SKH51SKH-51, alias high-speed steel, also known as steel or front steel, meaning quenching even in the air can be hardened when cooled, and very sharp. Chong stainless steel, skd series of more conventional mold, toughness and wear resistance are quite different. Die material: DC53DC53 is Japan's Datong special steel SKD11 to improve the new cold-work die steel, the technical specifications are contained in the Japanese Industrial Standards (JIS) G4404. It overcomes SKD11 high temperature tempering hardness and lack of toughness weaknesses, will be in the field of general and precision molds SKD11 fully replace the high strength and toughness of common cold die steel.   Company ProfileDongguan Quapin Hardware Co.,Ltd.Dongguan Quapin Hardware Co., Ltd is a joint venture, it specialize in R&D, manufacturing both domestic and abroad CNC turret punch press tooling (NCT) mould. Quapin is Dongguan one of the most large-scale CNC turret punch press tooling manufacturer.QUAPIN is equipped with advance production equipment and inspection equipment. For example, CNC Center has CNC machining center, CNC computer lathe, sodick CNC wire-cut machine, CNC EDM machine, Professional internal grinding, Precision cylindrical grinder, Precision flat stone mill other other advanced processing equipment and optical projections, Hardness tester, Sand blasting machine, Marking machine and other high-precision tes
