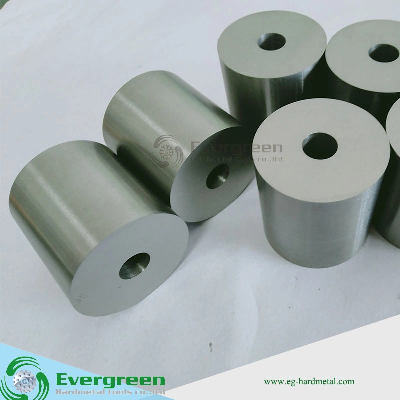

Tungsten Carbide Cold Forging Heading Stamping/Extrusion Punch Dies Mould

Tungsten Carbide Cold Forging Heading Stamping/Extrusion Punch Dies Mould  Product Description ApplicationWire drawing molds are widely used, such as electronic devices, radar, television, instruments and aerospace and other high-precision wire, as well as commonly used tungsten wire, molybdenum wire, stainless steel wire. Wire cable wire and all kinds of alloy wire are drawn by diamond drawing die. The diamond drawing die has extremely strong wear resistance and long service life because of the use of natural diamond as raw material. Grade for Tungsten Carbide Punching DiesGradesDensityg/cm3T.R.SMPaHardnessHRAPerformance & application recommendedYG1114.4260088.5Forming or stamping dies for metal powders and nonmetal powders.YG1514.0280087.5For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress.YG2013.5320085.5For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.YG16C13.9290085.5Impact resistance forging dies.YG18C13.7310084.5Impact resistance forging dies, hot-press forging dies and rollers.YG20C13.5330083.5Dies for wear resistant or impact resistant application.YG22C13.3350083.0Nut forming dies and high impact resistance forging dies.YG25C13.1360082.5Stainless bolt header dies and rollers.Some typical types of tungsten carbide puching dies Heading die blanks for making standard boltsDie blanks for reducing diameter of nutsHeading die blanks for making hexagonal nutsSome standard types of tungsten carbide wire drawing diesType S11-Carbide drawing die nibs with large reducing anglesfor drawing ferrous metal wiresTypeDHRange of dhα°S11-860.3-1.00.3-0.614°1080.70.614°13100.4-2.80.3-1.616°15130.5-3.00.3-1.416°16140.4-3.80.3-1.816°20171.2-4.72.0-2.618°21171.8-5.71.2-3.018°22181.7-6.41.2-3.018°Type WTypeDHdhα°W102-d960.4-1.30.4-0.712°W103-d1280.2-2.70.5-1.414°W104-d15100.5-5.00.5-2.014°W105-d20141.0-7.50.8-2.014°-16°W106-d25185.3-8.01.9-2.216°W107-d30222.9-11.72.2-3.616°W108-d35256.0-16.02.5-4.816°W109-d402710.3-16.53.2-4.618°W110-d503014.4-19.44.4-4.818°W111-d603518.5-274.8-5.618°W112-d704024.5-31.55.4-6.018°  Detailed PhotosAdvantage 1. Superior strength, toughness and high wear resistance with long working life . 2. 100% virgin tungsten carbide materials 3: ISO 9001 quality control system 4: Professional suggestion on products 5: Is very wide, mainly for drawing bar, wire, wire, pipes and other linear objects difficult to process for steel, copper, tungsten, molybdenum and other metals and alloys drawing processing;       After Sales Service  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
