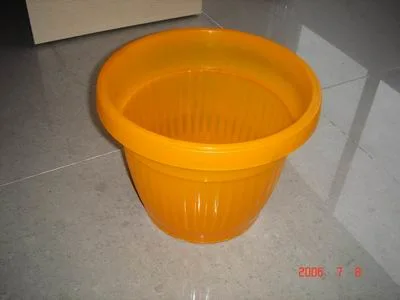

Plastic Products Injection Mould

Plastic Products Injection MouldWe supply plastic and injeciton mould. We can design and produce all kinds of plastic moulds according to customers' requirements. After many years' development and innovation, hot runner. There are departments special for machinery development and pet preform mould development. By foreign advanced technology and management system, under advantage of our solid technical power (professional engineers, large-scaled workshops, good design techniques), we are capable of having been developing different kinds of plastic forming process and machinery to supply the best quality products and service to the customers. High quality but reasonable price has been widely approved by our customers both in home and abroad. Main mould components (die core, die cavity, screw neck) are made by injection process, and the material of which originates from Sweden high-quality mould steel (HRC 45).In this way, it is no doubt that the mould can be used for 2 million shots without any maintenance, meanwhile, the wall thickness between max. part and min. part is not more than 0.10mm; turning center processes make sure that every parts can match well; proper distribution of cooling water way improve productivity effect and molding cycle only takes 15 seconds( need proper water chiller, bottle design and injection machine).Plastic Products Injection Mould apply to Plastic injection molding machine,equipment information. INJECTION MOLDING MACHINEZQ88-M6ZQ128-M6ZQ168-M6International size rating275/88416/128619/168INJECTIONABCABCABCShot volume   cm3129163201215263316291349463Shot weight     g121153189196239287273328435(PS)        oz4.25.46.66.98.4109.61215Screw diameter    mm323640384246424653Injection pressure Mpa214169137193158132190169120Screw L: Dratio   -----23:120:118:122:120:118:123:120:118:1Screw stroke    mm160190200Screw speed (stepless)   r/min0-2150-2200-234CLAMPING SYSTEMZQ88-M6ZQ128-M6ZQ168-M6Clamping force     KN88012801680Opening stroke   mm320380430Platen size  mm×mm550×550620×620700×700Space between tie bars mm×mm360×360410×410460×460Max.daylight       mm680810930Mold thickness (Min-Max)   mm150-360150-430180-500Hydraulic ejection stroke      mm100125140Hydraulic ejection force   KN314250POWER UNITZQ88-M6ZQ128-M6ZQ168-M6Hydraulic system pressure    Mpa1617.517.5Pump motor    KW7.51115Heating capticy  KW6.58.99.8Number of temp control zones3+(nozzle)3+(nozzle)3+(nozzle)GENERALZQ88-M6ZQ128-M6ZQ168-M6Dry-cycle time  Sec1.11.31.8Oil tank capacity  L200220300Machine dimensions(LxWxH)  M x M x M4.42x1.07x1.724.86x1.09x1.755.04x1.17x1.97Machine weight   Kg350040005000Note: The specifications are subject to change without notice for the further improvement. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
