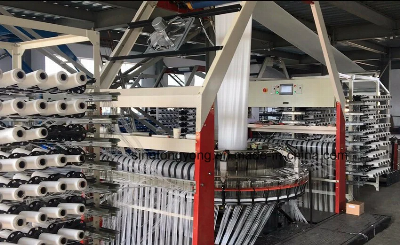

Six Shuttle Circular Loom for PP Woven Fabric (SJ-FYB850-6)

HIGH SPEED FLAT CAM SIX SHUTTLE CIRCULAR LOOMPERFORMANCE AND CHARCTERISTICSOur company has recently developed the flat  cam high speed six shuttle circular loom (SJ-FYB850-6 Model),it is specially designed to make high quality tube fabric from plastic tapes,and the finished the tube fabric can be widely used to make chemical bag, cement bag, rice bags, flour bag, feed bag and so on. performance:Use the DELTA servo motor to drive the cam mechanism, avoid to use the complex driving mechanism, this has the advantages of high efficiency, energy saving, consumption reduction, stable operation and low failure.Use the DELTA intelligent lifting system and press sensor to be compensated automatically, completely eradicate the fabric dense and parse phenomenon when start or stop the machine.Use the BETA bobbin sensor and weft sensor, with automatic warp tape feeding system,signal transmission system for weft tape break down and weft tape finish,automatic rewinding system,all of these provide good conditions to make the high quality fabric.The man-machine interface operation, powerful, centralized control, and easy to operate.  MAJOR TECHNICAL PARAMETERSSJ-FYB850-6 CIRCULAR LOOM COMPLETE MACHINE SET MAJORLY FORMED BY MACHINE BODY, WINDING-UP MECHANISM, TWO BOBBIN SHELVES, SURFACE WINDER AND ELECTRONIC CABINET MAJOR TECHNICAL PAPAMETERS AS FOLLOWS:SHUTTLE QUANTITY: 6 PCS,                     WEAVING WIDTH: 300-850 mmMAX QUANTITY OF WARPS: 720PCS         MAIN MACHIN ROTATION SPEED: 130-160 rpmPRIME MOTOR POWER: 3 KW                 PRODUCTION SPEED: 110 - 160  M/HINSTALLATION DIMENSION(L*W*H): 9000*2400*3000 MM   WEIGHT:2000 KGS  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
