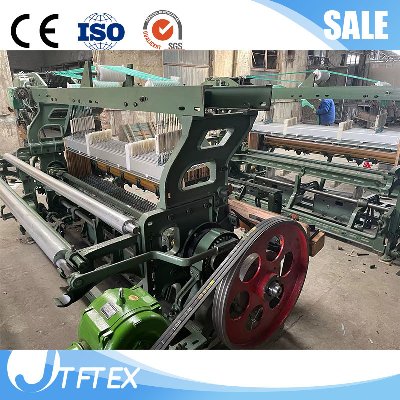

Automatic Fast Speed Multi-Box Changed Weaving Power Shuttle Loom Machine

Product DescriptionIt is mainly used to weave plain weave cotton and chemical blended fabrics. If equipped with dobby we can weave fabrics of complicated patterns.  Fabrics process feature: dobby to 16 pcs heddles fabric weave.Main ParameterTechnical featureReed width (cm)135 - 180 Rotation speedDesign speed 150-180rpm.Motor speed960rpm.Operation typeAutomatic changing shuttles without machine halt.HandleLeft or right Shuttles inventory10 pieces.Motor power0.8KW.Overall dimensionsTabby 3171 x 1596 x 1540cm3; dobby 3171x 1596 x 2250cm3.Net WeightTabby 1400 Kgs; dobby 1600Kgs (not including motor).Main componentsShedding deviceInner side tappet type top roller harness mounting shedding; 6 pages of spring heald return sheddingPicking motionUnder pickingBeat-up motionCrank shaft beating-upTake-up mechanism7 tooth type intermittently take-up.Let-off motionSemi positive and semi negative automatic let off.Warp stop motionWiggling back and forth mechanical stop.Weft stop motionPoint pecking type of weft detector.TempleRing type copper cylinder with pin.Warp-protector motionMovable reed.Weft supplying motionAutomatic shuttle changing type.Detailed Photos  FAQ   Q: Why Choose Our Company?Jingtian Textile Machinery Co., Ltd. (founded in 1991) is a key backbone production enterprise in China's textile machinery manufacturing industry. It has a long history and experience in independent development and production of textile machinery products. It has a first-class R & D center and scientific and technological development team. It is an enterprise that has passed ISO9001 quality system certification earlier in the industry. At present, the company has 20 subsidiary companies with nearly 300 employees. Diversified products, standardized corporate governance structure and flexible business mechanism have injected new vitality into the development of the company.Q: How's the after-sale service?We offer engineers available to service overseas under merchandiser's supervision and translation.Q: Are you available for on-the-spot invitation?We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.Q: Is the price offered changeable?We offer reasonable price for every client, and the price is changeable according to purchasing amount.  Q: How about the quality?We have an intelligent manufacturing system.Q: Are you a manufacturer or Trade Company?We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.Q: Product /Quality Guarantee and After Sale Service?1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.Q: One-stop Service:We have R&D department including more than 100 engineers which are improving and enlarging our supply range.Q: Certification?JingTian is an ISO9001, ISO14001 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. JINGTIAN will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.Contact Us/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
