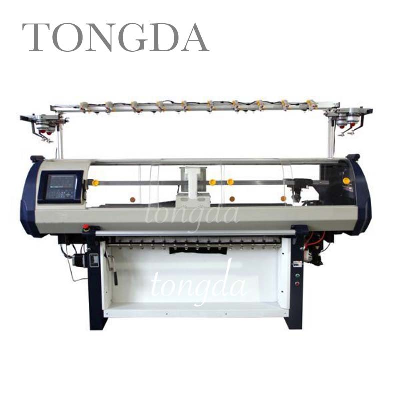

Tongda Td-52 Computerized Jacquard Sweater Making Flat Collar Cuff Knitting Machine

Product DisplayTD-52 Collar Knitting MachineThe cam structure optimization, used the motor model, greatly improved the speed of needle transfer. Small carriage, can return fast, improved work efficiency. Cooperating the yarn store improved the flatness of fabric. Optimized and improved rolling system and feeding system, increase the service life of quick-wear parts  ApplicationModelTD-52Gauge12G.14G.16GKnitting SystemSingle System, Single CarriageKnitting Width44,52,60,80,1+1-80 InchKnitting SpeedMax 1.2m/sKnitting FunctionTranfer. tuck, miss. jacquard, intarsia, hide or apparent shaping.Stitch DensityStitch system controlled by stepping motor, 24 section stitch selectable, adjustable scope supported by subdivision technology:0-650.RackingControlled by AC servo motor, racking within 2 inches and with fine adjusting function.Drive SystemThe carriage is driven and controled by the operating system.Needle SelectionEncoder positioning, 8 sets of solenoid needle selection structure.Yarn Carrier2 sets of 6 feeders on both side of the 3 feeders rail.Take Down RollerProgrammed instruction controlled by stepping motor, 32 section levels selection adjustable area: 0-100Protection SystemThe machine will automatically alarm if yarn breaking, float yarn, rewind, end of knitting, fail of racking, needle breakage anderror programming occur ect.Control SystemSpeed machine head return, 7 inches touch screen system, USB memery, time counting, visual interface control, maintenance history,easily system update.Power220V/380V optional, single-phase or three-phase:Automatic memory and recovery function for power failure.Net Weight480kg, 590ka, 660kg, 900ka, 950kgTD-80 Collar Knitting MachineApplicationModelTD-1-80Gauge12G.14GKnitting SystemSingle System,Double CarriageKnitting Width80InchesKnitting SpeedMax 1.2m/sKnitting FunctionTranfer, tuck, miss, jacquard, intarsia, hide or apparent shaping.Stitch DensityStitch system controlled by stepping motor, 24 section stitch selectable, adjustable scope supported by subdivision technology:0-650.RackingControlled by AC servo motor, racking within 2 inches and with fine adjusting function.Drive SystemThe carriage is driven and controled by the operating system.Needle SelectionEncoder positioning, 8 sets of solenoid needle selection structureYarn Carrier2 sets of 6 feeders on both side of the 3 feeders rail.Take Down RollerProgrammed instruction controlled by stepping motor, 32 section levels selection adjustable area: 0-100Protection SystemThe machine will automatically alarm if yarn breaking. float yarn, rewind,end of knitting. fail of racking, needle breakage anderror programming occur ect.Control SystemSpeed machine head return, 7 inches touch screen system, USB memery, time counting, visual interface control, maintenance history,easily system update.Power220V/380V optional, single-phase or three-phase;Automatic memory and recovery function for power failure. Exhibition FAQ (1) Q: Are you a manufacturer or Trade Company?A: We are a professional manufacturer holding our own International Trade Department, for thatwe can better understand customer's needs and offer a reasonable price.(2) Q: Are you available for on-the-spot invitation? A: We do welcome our new and old friends come here to have a visitation.Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.(3) Q: Is the price offered changeable?A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.(4) Q: How about the quality?A:The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.(5) Q: How's the after-sale service?A: We offer engineers available to service overseas under merchandiser's supervision and translation.Contact Info      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
