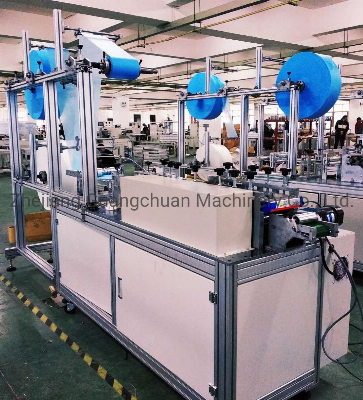

Full-Automatic Hospital Surgical Face Mask 3 Ply Making Machine

Full-automatic Hospital Surgical Face Mask 3 ply Making MachineAdvantages:1. Adopting aluminum alloy rack which is more light and solider2. High stability3. Two output line , high capacity4. Fully Automatically , make outside earloop welding togther with mask producing process which can save  labor ,  once  non woven raw material in unwinding part use up , the machine can automatically stop .Technical parameters:  Voltage220V 60HzMachine dimension5300*3300*1700 mmMask Size17.5*9.5 cm ( that is standard size , we can also  specially customize for your different mask size)Capacity80-100 pcs/ minPower Source220VHost machine Configuration list NO.    NameBrandSpecification1 Touch ScreenMCGS 2PLCSIEMENS 3Auxiliary RelayOMRON 4Circuit BreakerSchneider 5ContactorSchneider 6Inching ButtonSchneider 7Scram ButtonSchneider 8Frequency TransformerSchneider 9Radiator FanChina 10PotentiometerChina 11Electrostatic TreaterChina 12UltrasonicChina 13Switch Power SupplyMW 14Three Phase Asynchronous MotorMITSUBISHI 15Speed control motor(120W)China Welding Machine Configuration list No.NameBrandSpecification1Touch ScreenMCGS 2PLCSiemens 3PLC ExpansionSiemens 4Auxiliary RelayOMRON 5Circuit BreakerSchneider 6ContactorSchneider 7Two Button rotary switchSchneider 8Inching ButtonSchneider 9Scram ButtonSchneider 10Power Supply SwitchMW 11Radiator Fan&Square Shield(gray)China 12Servo Motor(750W+750W+750W)MITSUBISHI 13Servo Motor Drive (750W+750W+750W)MITSUBISHI 14 CylinderAir TAC 15 Ultrasonic (2PCS)China 16Solenoid Valve(6PCS)MINDMAN 17Proximity SwitchFOTEK 18 Photoelectric SwitchOMORN 19Single Phase MotorSONGGANG 20Air SwitchSchneider 21Stepping Motor(4PCS)HUNTBEST 22Stepper Motor Controllers(4PCS)HUNTBEST 23Small frequency converterChina Machine pictures /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
