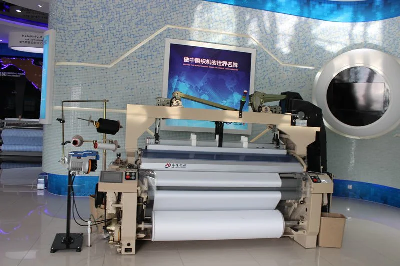

Hj851 -190cm Textile Machinery Water Jet Loom for Surat

1,HJ-851# Plain Shedding Device SpecificationHJ-851#No.NAMEORIGINTYPEPERFORMACE DECRIPTION1Wall boardWe adopts HJ-851special heavy enhanced, according to TSUDAKOMADrawing,HT220-230 standard material,large CNC precision machining.2Gear in the large boxAdopt Taiwan Datong(TTG) gear, ultra-quite,wear-resistant,low vibration and high precision3Bearing in the large boxBearing in the large box is swiden SKF, Bearing out of the large box made in japan.4Beating up shaftAdopt special treatment of solid beating up shaft, centralized oil lubrication in the support sleeve, add in weft counterweight balance system (Haijia patent:201220718493.9), optimization of beating up angle, the beating up more powerful and stable, cloth smooth.5SlaySUS304 stainless steel reinforced and polishing processing slay at the top brand in China, achieve cloth smooth.6StripeTianqi stripe, For 102 double stick, strengthening take-up.7Plastic stocksNew type and high quality plastic stocks8BeamA number of optimization design on the basis of TSUDAKOMA ZW-851, the beam before and after the five angle pipe, steel material supply, before and after the beam with thickened angle.Especially before the beam on Haijia, unique design, draws on the advantages of air jet loom beam, making solid beating up shaft is more stable.9Suction pipe∮76mm,thickness 6mm,sus304 stainless steel.10Cross beamHeavy and lengthen treatment11Tension spring∮12mm12PanelHJ-851 Special type13Let-off and take -up deviceMechanical or electronic14Temple bar,guideHJ-851 Special type ,3mm stainless steel15TempleFive ring three rows of fine needle puncture (0.3mm) under the pressure of Temple (made fine denier fabric cloth smooth) South Korea Renhe or Jilong brand.16Leno partsTaiwan production assembly (slide seat:Stainless steel, low noise ear wire assembly, running smoothly, long service life).17Press rollNew press fabric service,press roll 40#,equal tension take-up18Main motorThe Haijia special power of 3.0KW red flag.Save electricity,start fast,low noise,little park,long life and other advantages(self-purchased Japan NACHI bearing)19Electronic control systemXinliao Brand.20MeasuringElectronic measuring21Light detection weftLight detection weft, plus plug signal amplifier22CodeElectronic code23PlungerShutai ceramic plunger(39/28 mm)24SpringJAPAN AWA spring(∮10x∮150 mm)25NozzleKorea MDH 90/60 nozzle26One way valveJapan AWA valve,up 8# down 9#.27Oil sealMade in Taiwan28Cutter partsTaiwan joint bearing,scissors,scissors spring ,improve efficiency.29Suction motorElectronic suction motor30Stabilized tankDouble filter,bucket type.31Take heald level linerAmerican DuPont material production, wear, long service life.32Dobby or heald frameCustomer can match by themselves.33PaintingTSUDAKOMA yellow color, two times over the primer, topcoat, special paint production line, improve the anti rust effect.34The whole machine of Stainless steel screwTaiwan dongming SUS304 stainless steel screw,not rust.35Waterproof deviceThickened waterproof curtain, TSUDAKOMA style transparent waterproof cover plate.36False twist spindlePull type37Weft standDouble nozzle standard weft stand.38Swing degree95 Swing degree39CastingIdentify quality supplier, according to the standard drawings, guarantee the material and weight.2,Haijia factory Large CNC Workshop    Assembly Workshop3,Haijia Exhibition Hall4,Performance Of Water Jet Loom In Haijia Customer's Workshop5,Haijia machine spare parts.  What are you waiting for?Sales hot-line:Bob,+86-15265420508  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
