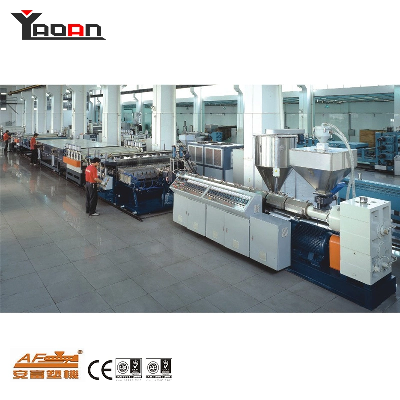

PC\PP\PE Hollow Shutter Extrusion Machine

PCPPPE Hollow Shutter Extrusion MachineYAOAN Adopted suitable screw design and machine configuration, it is widely used in manufacturing PP or PC hollow profile boards of various specifications(Max. Width: 2500mm; Thickness range: 2mm-12mm). It is widely used in the fields of advertisement, decoration, sound-proof, packing. Because it is featured by light-weight, strong, damp proof, anticorrosive advantages, it trends to replace the paper carton gradually and become the first choice to make packing cases.Extruder: The special designed screw and the advanced temperature control system ensure the good plasticizing, stable extrusion and high output.Screen changer: It is of hydraulic style fast screen changer and ensures the short course of the exchanging filters. Double filters and special leakage-proof structure guarantee its stable performance.Die: Made of super quality alloy and adopted adjustable restrictor bars, provide the even pressure of the plastic flow at the die lips. It ensures even thickness of the board with adjustable lipsVacuum calibrator: The vacuum system and calibrating system including a heat-convection system array interleaved. This kind of design guarantees the high precise degree of the calibration. The vacuum system consists of two independent subsystems, which is equipped with many pieces three point type closed loop vacuum line. Each closed loop is equipped with vacuum regulating system and vacuum display system. This guarantees the good calibration and the smooth surface of the board.Take-off unit: There are two haul-off units. First one consists of multi-rolls and is driven by a strong motor with a speed reducer with a big gear ratio. It has strong take-off strength and performs well at slow speed so that it can draw the board up from the calibrator evenly and synchronically. Second one is put after the infrared stabilizing oven. The slit unit fixed on the take-off unit ensures the smooth cut of the edges.PE PP PC Hollow Profile Sheet Board Machine models:nomachine modelfilm width1AF-12001200mm2AF-18001800mm3AF-25002500mmPE PP PC Hollow Profile Sheet Board Machine details photo:PLC control panel, mould, calibration table. etc:Filter, melt pump, mould, calibration table etc:Cooling frame, corona treatment, slitting unit, cutter:PE PP PC Hollow Profile Sheet Board photo and application:Machine shipment:YAOAN factory complete view:  FAQQ1: What is the guarantee of the machine? A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory; Q2: What package do you use for the machine? A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry. Q3: Do you have instruction manual to guide us if i buy the machine? A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime. Q4: What is your service to overseas clients? A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime. Q5: What is your contact details information? A5:  PLS contact: DONGGUAN CITY YAOAN PLASTIC MACHINERY CO., LTD.ADD: 10#, FUMIN INDUSTRIAL DISTRICT, DALANG TOWN, DONGGUAN, CHINAMr. Kevin ZhangMOBILE: +86-13609663170   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
