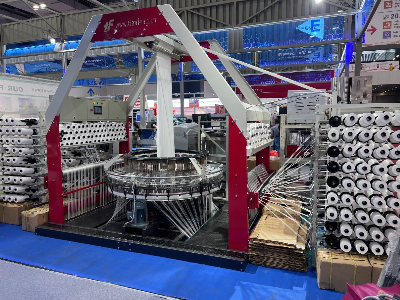

Newest Woven Bag Circular Loom (SJ-YZJ-6/850)

Product Description 1. The cam driving unit has been optimum designed and created to ensure long time running and less electrical and spare parts consumption. 2. World top advanced weft detecting system is extracted to increase to auto running and effective of the machine and also rejects can be reduced by the same. 3. Advanced weft detecting system is used to reduce the rejects and seconds. 4. Advanced synchronous electrical control system for main motor and hauling off unit is adopted to ensure the fine smooth and flat weaving performance. TemMain Scheme NameData1ShuttleSix Shuttle2Rangeof Diameter300-850mm3Maxim Warps720pics4Density of Warps32-58(pics/100mm)5Speed of Main Engine100-180(r/min)6Speed of Weaving1.8-2.7(m/min)7Power of Main Engine3KW8Specification of BobbinΦ38×230  Φ31×230 9Maxim Diameter of Wefts BobbinΦ115mm10Overall Dimension9100×2410×3100mm11Weight3000kg12Camunitadopt new-type plane cam structure, high output, high efficiency, low electricity     consumption, low spare parts consumption.13Shuttle unitadopt ideal wheel form shuttle, non-lubrication, low pollution14Cut of WarpStop Working Automatic and Identified by Conducting Light15Usage or Cut of WeftStop Working Automatic16Counting Length DeviceMicro computerInspecting, Digit Display17Control form of Main EngineFrequency ConversionContact Detail /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
