Tongda Blowroom Carding Machine Textile Machine for Spinning Line

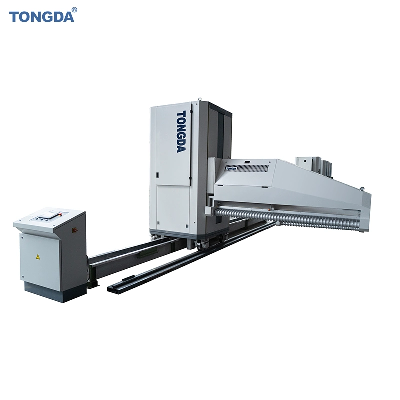

   TONGDA Blowroom Carding Machine Textile Machine For Spinning Line  Bale Plucker:FA017 series bale plucker as the first process of blowroom&card is suitable to each kind of cottonand chemical viscose fiber length less than 76mm.The pluck arm,mounted with two beaters,can lift and resolve 180. The plucker arm moved and back to pluck fiber above bale.the fiber plucker are sucked into thefront feeder by air current through transport duct for further process. Main Features:Bales can be placed in two sides. The machine can pluck 1 to 3 group bale with different height and density.Meet the demand for kinds of yarn at the same time.Tower can revolve 180.It is designed with two plucking rollers and two detecting rollers.With different working width of milling there are 1723 plucking knives and 102,138 tips on each plucking roller;while plucking roller revolving,it make even distributed plucking line.The position of knife tip and automatic plucking controlled by microcomputer.Main Technical Parameters:  Parametersbeater width1720(special)beater width2300(normal)production1000kg/h1500kg/hBasic pile weight6000kg7500kgLength of floor spacebasic type22.03m(8 sections of airducts)can be increased or decreased by2.5mxnBales arrangement lengthbasic type15.9m(8 sections of airducts)can be increased or decreased by 2.5mxnIntermittent dropping of beater0.5~10mm/time frequency controlUsually 1~3mm/timeCalender roller dia.Φ130mm both sides    middle Φ116mmCarriage reciprocating speed16.4m/min(max)Generally 10m/minInstalled power 8.6kw10.6kwOverall size 22030*5212*308222030*6648*3082Net weight 60006500 Construction Figure:  Carding Machine:Intelligent Control:1. Advanced Control System Monitors.2. The Working Status and Running Efficiency.3. Safety Protections and Self-Diagnosis SystemHigh Quality and High Efficiency 1. Sophisticated Suction System Provide Better Opening and Cleaning.2. Independent Transmission Motors Adjusted by Inverts For High Efficiency. Easy Peroration and Maintenance1.User Friendly Graphical Interface2.Easy Access to control Parameters3.Smart Mechanical Design Makes maintenance An Easy Take  Our CompanyWhy Choose Our Company?A: History:Tongda Textile machinery Group was establish in 1952.Now have more than 60 years old history.B: Main Products:Tongda Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame,roving frame,weaving machine(water Jet loom/Air jet loom/rapier Loom),warping machine, quilting machine and nonwoven machine.C:Product /Quality Guarantee: All the Machine have 1 year Quality  Guarantee.D:After Sale Serivice: We are work online 24 hours. If you have any questions about our machine you can contact us.FAQ(1) Q: Are you a manufacturer or Trade Company?A: We are a professional manufacturer holding our own International Trade Department, for thatwe can better understand customer's needs and offer a reasonable price.(2) Q: Are you available for on-the-spot invitation? A: We do welcome our new and old friends come here to have a visitation.Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.(3) Q: Is the price offered changeable?A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.(4) Q: How about the quality?A:The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.(5) Q: How's the after-sale service?A: We offer engineers available to service overseas under merchandiser's supervision and translation.Packaging & ShippingA. Packing: The Machine Packed in Wooden CasesB.Delivery Details:Within 30days after you Receipt of first T/T Payment.Contact Info /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
