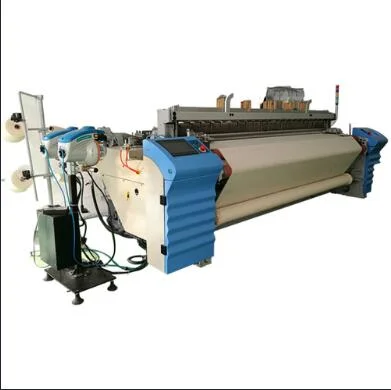

Model JLH9200 air jet loomTechnical parameter Item SpecificationRemarkReed width Reed width(cm) 150 170 190 210 230 280 340 360 Useful reed width Reduce 0-60cm (150-230cm)Reduce 0-80cm (280cm above) Fabric Material & weave Cotton Filament Rayon Plain Twill Satin jacquard Power Main power 2.2kw ( crank/ plain shedding) 3.0kw ( cam shedding ) 3.7kw (dobby shedding ) 4.5kw (jacquard shedding) The data only for your reference .Power consumption is depend on reed width and shedding method.Speed Motor-belt pulley RPM 550 600 650 750 850 1000 (below 230 cm, )Standard configuration only for one option.Customer should pay extra charges for others options.RPM 450 550 650 750(280cm) RPM 400 450 550 (340,360cm)RPM 350 380 410 (340, 360cm twin beam and double beam)Weft insertion Weft selection Single color D double color Four color Six color Magnetic valve SMC JapanTwin nozzle per valve Feeder Vibration model Without WPS WPS 1 2 3 4 6 Nozzle Energy-saving nozzle Shedding Shedding method Crank plain shedding Positive cam shedding ( Bintian niupai Staubli) Dobby shedding( Changfang niupai Staubli) Jacquard shedding Heald frame 4 6 7 8 10 16Brand :New light Japan Cam plate type 1/1 1/2 2/2 1/3 1/4 others Let off device Continuous positive let off Positive easing Euro beamTwin beam Double beam Flange diameterØ800Ø1000 Take up device Take up Electronic take up (ETU) Max cloth roll diameter Ø600mm(cam dobby jacquard)Ø520mm(crank)Ø1200mm(jumb batching motion) Weft densityTake 40s cotton yarn for example ETU 25-300picks/inch Beating Crank beating systemFour-bar beating -up motion (below 230cm)Six-bar-beating-up motion(above 280cm) Selvage Leno gear selvage edge Tuck-in device or leno selvage Temple Top mounted Bottom mounted Adjustable top mounted Ring number 2 4 15 2030 42 others Rubber type Cutter Mechanical cutter Lubrication Manual oil supplyAutomatic oil supply Stop motion Weft stop Reflective weft feelerOne heads system Two head system Warp stop Electric 6-row contact bar system Control systemInovance brandMade-in-ChinaWith NAVI-borad(data setting, automatic control,monitoring,self-diagnosis function, WPS interface) AutomationPick endingAPF automatic pick finder Accessory Heald wire plastic or s.s10000pcsWarp beam 1:1.5Cloth roller1:1.5Reed energy-saving type1:1 Dropper close or open10000pcsFrequency conversion cabinet(power box)-inside of electric box1:1/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
