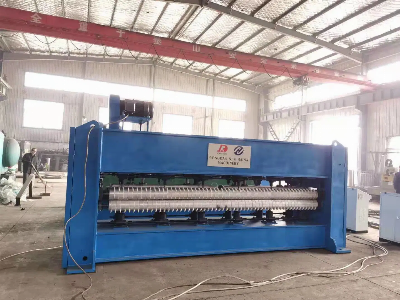

Non Woven Production Line/Middle or High Needle Loom

Non woven high efficiency polyester fiber iron heating Machine/CalanderMade by our factory Gaomi Rongda/RD Machinery Co.,Ltd.It is suitable for heat treatment of non woven surface to reach required thickness and smoothness.Heating method:electric or oil boiler.Two kind of structural style:2-roller vertical and 3-roller vertical.Temperature is auto- controlldeand digital dispalyed.  NO.ITEMDESCRIPTION1Model GMZ-320/2 2Dimension of M/CL3800W1400H2025(mm) 3Weight 6700kgs4No of heating roller 2sets5Heating rollerΦ370mm×L3200mm 6Temperature of working face≤220ºC 7Running speed ≤8m/min8Working width2000-6200mm9Structural features1:Two-roll vertical, electric heat conduction oil heating insulation. The main body frame is made of high quality carbon steel welded together2: At the bottom of the roller is adjustable, in the middle of the roller is fixed, the upper roller manual worm gear to adjust elevator, the adjusting range is 0 to 50 mm10Heating rollerΦ370mm; Material of 45 # steel, wall thickness, 30 mm roller surface 2800mm long, fine grinding hard chrome plated surface or tetrafluoroethylene adhesion. Adjustable surface temperature of 100 ~ 220 ºC11Running drive3 kw - 6 type motor with 120/50:1 worm gear reducerOur Advantage,1.Manufacture the core parts by ourselves2.High quality raw materials3.High quality chrome plating on working face4.The diameter of heating roller can be customized5.fast heating6.Suitable for non-woven cloth and surface treatment industryAbout our factory,Our Company,  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
