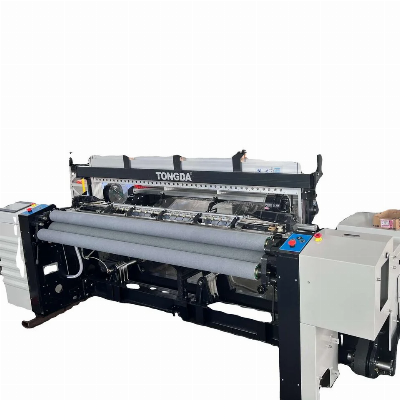

TONGDA High Efficiency Double Nozzles Plain Cam Dobby Shedding Weaving AirJet LoomProduction DescriptionTo go with the trend of market development, and to meet custermers requirements for high-quality andd diversification of air-jet looms, TongDa team elaborately forged and launched higher-speed, more stable and more energy-saving A9100 all-powerful series air-jet looms based on the idea"to break the rules, you must first master them".The machine is of high electromechanization, more excellent in high-speed, low vibration, energy-saving and less manpower, applicable to weave products from common garment fabrics to various industrial fabrics ranging from denim, woollens, glass fibers, tire fabrics, airbag fabrics etc. As the new generation of weaving equipment, it has great development potentiality.SpecificationRateup to 1235m/min, depending on fabric typesReed space150, 170, 190, 230, 280, 340cmWeft Short fiber-7 to 60 tex ( 80 to 10 Ne, need additional device if below 10Ne)Long fiber-5 to 44 tex (40 to 400den)The main transmission AC starting torque motor direct starting, slow forward and reverse runningbeating-upbilateral four connecting rod, the six connecting rod beating upweft stopdouble weft detectionSheddingcrank, cam, electronic dobby, jacquardtake upelectronicalLet -offelectronic let-ofweft supplysingle colr, two color, four- color mixed free weftStops6 lines of electronic stopping deviceSevageleno (rough and plain)Electronic controlusing programmable computer controller as the coreLubricationthe big gear, let-off, take- up gear box with the oil bath type lubrication, the other by forced centralized oil supply modeAdvantages*MORE INTELLIGENT*MORE EFFICIENT*MORE CONVENIENT*MORE ENERGY-SAVINGFeatures1.More stable when high speed runningName: integrated side frames Patent No: 2016201698706high rigidity cross rails and mid-supporters to form ultra-high strength frameworks, thus make looms keep low vibrations while its high-speed running. 2.Standard six air box in body framewe set six air box in one body frame, and in case customers want to increase colors in fabric,they don't need to change the machine body, just adding feeders to the machine 3.Adjustable external let-off mechanismEquipped with external loose warp mechanism, which make operation more simple and convenient,eccentric device with graduation marks can make loose warp amount adjusted freely among 0-6 mm to meet the requirements of more fabrics. Electronic&pneumatic tuck-in device ,which can directly tuck weft ends into selvedges to achieve clean ones.Our CompanyWhy choose our company?1,65 Years Experience Professional Manufacturer.2, We have CE and ISO9001 certification.3, Quickly delivery and Competitive price with high quality4 , We can design and supply the whole production line for you.FAQAbout Payment Terms: We accept the following payment methods: T/T & L/C.About Photos:All products' photos are true and taken carefully by our Graphic Designer Team.About After-Sales Service:Our goal is Good,better,best,never let it rest. & Our service purpose is try our best to make customers satisfied.Professional team will solve any problems you met during the whole purchasing progres.Packaging & ShippingA. Packing: The Machine Packed in Wooden CasesB.Delivery Details:Within 30days after you Receipt of first T/T Payment.Contact Info /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
