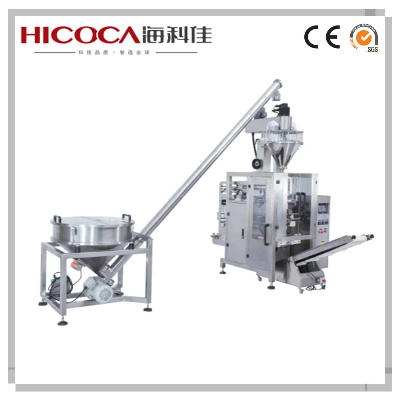

Full Automatic Vertical Powder Pillow Bag Packing Filling Sealing Machine

Hot Sale Coffee Bag Quantative Vertical Packing MachineApplication:This machine can do the work of bag-making, weighting, filling, filling the nitrogen,date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.Features:1 Based on the stand pouch, this machine add four corners edge, which make the bag more .2 This series canfinish the precess of bag-making, filling, sealing, printing,punching,counting,using the servo motor belt tension membrane, with automatic correction function.3 PLC control components adopt international famous brand electrical sub-reliable performance;horizontal longitudinal seal pneumatic seal,smooth and reliable operation.4 The advanced design ensure that the series of packaging machines suitable for different industries in the use of adjustment, the operation and maintenance are very convenient with a variety of measuring equipment for use both at home and abroad.Technical specification:ItemModelSpecificationPacking MachineHKJ-420 Touch Screen:7 Inch;Preset parameters:10 kinds;Max Film width:420mm;Film Thickness:0.04-0.10 mm;Bag size:Width 80~200mm,Length 80~280mm;Packing Speed:5~60bags/min;Power:3KW,220V, 50-60 Hz;Air Source:0.6m³/min, 0.6 MPa;Size(L*W*H):1457 * 1130 * 1350 mm;Weighing Device30L Augar FillerCapacity:30L;(It must be more than 2/3 at work to be more accurate)Weighing Range:100~1000g;Precision:300~400g
