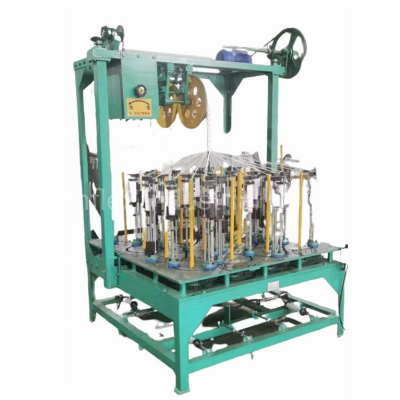

Oil Lubricated PTFE Gland Packing Square Rope Braiding Making Machine

Oil Lubricated PTFE Gland Packing Square Rope Braiding Making MachineTechnical Specification 1 Vertical square two-track 8-spindle braiding machine (universal) Dimensions900x900x1850Weight 300kgPower0.75kwWeaving rangebetween 3x3mm-8x8mm, determined according to the requirements and the thickness of the wire.Braided tubeLength190mmDiameter70mmFiber tension0.5-0.8kg , according to different materialsWeaving speed0.2-0.4 meters per minute, determined according to product size and tightnessWeaving densitychange gear adjustment1.2.Vertical square three-track 18-spindle braiding machine (universal)Dimensions1100x1100x1950Weight600kgPower0.75kwWeaving rangebetween 6x6mm-15x15mm, determined according to the requirements and the thickness of the wire. Braided tubeLength190mmDiameter70mmFiber tension0.8-1.1kg,according to different materialsWeaving speed0.2-0.4 meters per minute, determined according to product size and tightness.Weaving densitychange gear adjustment  3. Vertical square four-track 24-spindle braiding machine (universal)Dimensions1450x1400x2250Weight1200kgPower1.5kwWeaving rangebetween 10x10mm-35x35mm, determined according to the requirements and the thickness of the wire. Braided tubeLength190mmDiameter70mmFiber tension0.8-1.3kg, according to different materialsWeaving speed0.2-0.4 meters per minute, determined according to product size and tightness.Weaving densitymechanical stepless adjustment  4 Vertical square four-track 32-spindle braiding machine (universal)Dimensions1650x1700x2300Weight1600kgPower1.5kwWeaving rangebetween 16x16mm-50x50mm, determined according to the requirements and the thickness of the wire.Braided tubeLength190mmDiameter70mmFiber tension1.0-1.3kg, according to different materialsWeaving speed0.2-0.4 meters per minute, determined according to product size and tightness.Weaving densitymechanical step-less adjustment5 Single-spindle high-speed variable frequency winding machine*One winding machine can be used for 4 braiding machines.Dimensions500x700x1200mmWeight200kgPower0.55kwWinding speedfrequency conversion adjustable,1-3 minutes to wind a bobbin6 Four stick forming machine*A machine for the final forming of packing, a machine for pressing the packing into a square sizeDimensions550x750x1500mmWeight550kgPower1.5kwMolding speed15 meters per minute, molding range 3x3mm-50x50mmProduct DisplaySingle-spindle high-speed variable frequencywinding machineFour stick forming machine White pure packing seal Company IntroductionOur company is a professional manufacturer of packing sealing making machines, mainly for braiding sealing gasket sheets, sealing braided packing, etc. As sealing material, they're widely used in water, steam, the joints of pipelines, automobiles, and motorcycles; and in rotary pumps, valves, piston pumps, food, chemical and petrochemical, power station, steel mills, and other areas.Machine package-plywood package for standard seaworthy packageFAQ1. How can we guarantee the quality?Provide the sample before machine production;With final Inspection before shipment;2. Why should you buy from us, not from other suppliers?High-quality control for machine quality, Superior after-sales service.3. what services can we provide?Accepted Delivery Terms: FOB,CIF,EXW;Accepted Payment Currency:USD,EUR,HKD,CNY;Accepted Payment Type: T/T,L/C,PayPal,Western UnionLanguage Spoken: English,Russian/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
