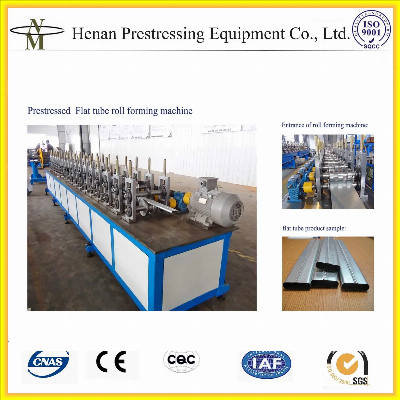

Prestressed/ Post Tension Galvanized Steel Stitching Flat Duct Machine

Prestressed/ Post Tension Galvanized Steel Stitching Flat duct Machine 1. Machine working flow:Manual De-coiler machine→Feeding & Guiding Device→Roller Forming Equipment→Saw Cutting Device→Product Stand Tables2. Production line layout (for reference):3. Raw Material Info:Material type: Galvanized SteelMaterial thickness: 0.35mm to 0.4mmMaterial Width: 185mmYield Strength: Q1954. Forming Post-Tension Oval Flat Duct Sizes: 50mm*20mm, 70mm*20mm, 90mm*20mm, 100mm*20mm5. Post-Tension Oval Flat Duct Machine Specifications:Forming speed: 0~4M/MinProduct speed: 0~4M/minRoller material: #45 steelForming stations: 18 stationsShaft diameter: 40mm Shaft material: 40CrForming structure: Guiding columnMachine base frame: tube welding structure Transmission type: gear box  Motor power of main machine: 7.5KW*1setMotor brand of main machine: SIEMENSBearing: needle roll bearing, taper bearingBolt: 8.8 gradesCutting type: saw cutting Whole Line dimension: about 15m*1.25m*2.0 m (L*W*H)Machine installation area: 25*3m (L*W)Voltage: 380v/415v, 50 Hz, 3phase.6. Computer control box:PLC->Japan MitsubishiFrequency Inverter-> American Emerson Encoder->Japan OMRONTouch Screen->MGCS 10 inch big sizeEmergency stop button Aviation plug, Remote controller   7. Machine components:3tons Manual De-coiler→1 setFeeding Guiding Device→1 setRoll forming machine→1 setGuiding Rail Saw Cutting Device→1 setExpend mouth machine→1 setHydraulic station→1 setExpend mouth mold→1 pcsComputer control box→1 units Product stand tables→1 setOUR ADVANTAGES Henan Prestressing Equipment Co.,Limited manufacture full complete post tension components, materials and post tension equipment for buildings and bridge construction. Our Product Ranges:1. Anchor System: unbonded monostrand anchor system, multistrands anchor system, flat anchor system, arch type flat anchor, anchor barrel and wedges, ground anchor, rock and soil anchor, anchor wedges, anchor bearing plate, spiral reinforcing rings.2. PC Strand System: unbonded pc strand, bonded pc strand, 12.7mm prestressed cable, 15.24mm prestressed strand, epoxy coated pc strand,galvanized pc strand, 6mm, 7mm, 9mm pc steel wire.3. Duct System: galvanized metal duct, HDPE plastic duct, curved type galvanized metal duct, flat duct, corrugated pipe. 4. Heavy equipment: bridge girder launching machine, drilling rig, bridge girder transporterFAQ:1). Q: What information should provide before placing order?We are appreciated you provide us detail information about your requirement:1. Inner Diameter Duct you need.2. Voltage for machine.3. What is your required Destination Port.4. Order Quantity. 2) Q: How is the delivery lead time:A: Goods in stock: within 3 days, Goods out of stock(7 days), Goods need to be customized(10-15 days). 3) What is your Minimum Order?A: MOQ: 1 Set. 4) Q: Payment Terms?A TT, LC, Western Union, Paypal, etc. 5) Q: How to transport the goods:A: by shipping, airflight, express. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
