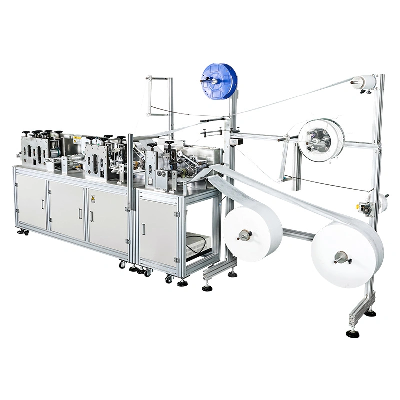

All-Servo Fully Automatic Flat Mask Making Line

Production Description1, machine introduction: KZPL-GL all-servo flat mask all-in-one making machine consists of 1 set host and 1 set earloop unit. It features auto procedure including auto creasing,overlock, set length cutting of nose bridge strip which is integrated with overlock cloth to make the mask body, conveying the mask body to earloop unit, gluing the strip to the mask nody by unltrasonic with auto counting, unloading the mask into packing unit.       2,input material specification:(standard material of mask)itemsHaning shaft Width (mm)Reel outer dia (mm) Material barrel inner dia (mm) weightfavric3170-200Φ600Φ76.2Max 15kgNose bridge strip11-3Φ400Φ76.2Max 25kgearloop2 bags3------ 3,mask dimentions:175m×95mm(adult): 1) flat mask : 2 ply non-woven mask, 3ply non-woven mask, 4 ply activated carbon mask2) material of flat mask:A, 2 ply mask: non-woven fabric, nose bridge strip, earloopB, 3 ply mask: non-woven fabric, nos bridge strip,earloop, Filter cotton(filter paper)C, activated carbon mask: non-woven fabric, nose bridge strip,earloop, Filter cotton(filter paper), activated carbon cloth Technical Parameter  sr.itemTechnical parameters1 machine structuremainly by aluminium profile2 dimension4750(L)*3500(W)*2000(H)3 specification175*95(adult)4 designed speed130 piece/min5 production speed50-100 piece/min(standard mask material)6 mask layers3-4 layer7 productivity90%8electric current60A9 cable required10 square meters10 voltage220V single phase11min.air pressure requirement0.6Mpa12 gas consumption300L/min13 weightApprox.1800KG14 ground bearing≤500KG/m215 protection protection hood for main transimission parts  Packaging & Shipping The first layerwrapping with foam film and stretch film for the special components, in order to avoid moisture.Second layerinside of plywood box, adopting small square plywood block and strapping belt to fix.Third layerthe machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.Fourth layerin a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection. Contact Us More inforamtion, please feel free to contact us by following: /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
