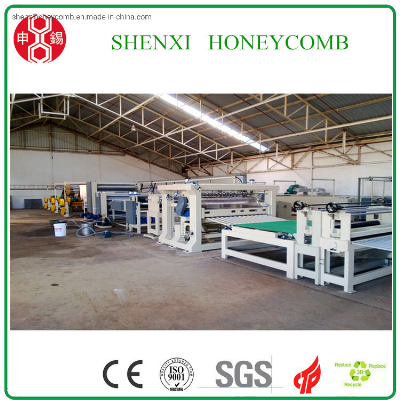

Fully-Automatic Hcm-1600 Honeycomb Core Machine

This machine is the newest type of honeycomb core making machine. It uses the raw paper to produce honeycomb paper in one stop. Which means connecting machine and cutting machine can be left out. The advantage of this machine is to save labor cost and high degree of automation. MachineAutomatic honeycomb core production lineModelHCM-1600  Effective width of core paper1600mmConfiguration    1. 3 sets of paper Roll stands2. Glue station 1&23. Heating unit4. Rubber roller pulling system5. Third gluing station6. Cutter& Delivery7. core conveyorWidth of input paper1600mmWidth of paper core(expanded)1300mmGluing principleGluing roller transmission coatingMax. Designing Cutting Speed380 cuts/minuteProduction Capacity6000m2/shift(after expanded,13.5mm cell size,340cuts/minute, 7 hours non-stop working)Qty of Paper reels6Thickness of honeycomb core10-100mmCell side length6-20 mm (choose two)Installation power40KWCutting DirectionHorizontal cutDimension24000*3800*2500Applicable paperCorrugated paper for honeycomb core(100-180g/m2)Manpower1-2/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
