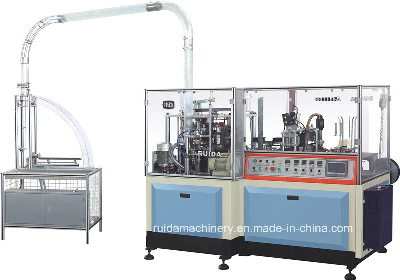

Intelligent Paper Cup Forming Machine

RD-12/22-100A high speed paper cup machine comes with two turnplate, open intermittent indexing cam mechanism and gear transmission, longitudinal axis structures. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly. Cup side sealing is done by Switzerland Leister heater to ensure side sealing stability, bottom sealing by  Switzerland Leister hot air device. Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and better appearance. The machine comes with PLC control system, sensorfailure detecting, and can stop working automatically if the machine has any problem, it can greatly improve operation saftety and reduceing labor cost. The machine can finish the whole process including paper feeding, side sealing, cup bottom punching and feeding, heating, knurling, cup-top curling, cup stacker. It is the best choice for making paper cups.  Technical data: ModelRD-100Cup size6-16oz, 16-22ozPaper material180-380gsmSpeed  80-100pcs/min  Max. cup dimensions Top diameter: 92mm Cup height: 170mmBottom diameter: 65mmMin. cup dimensions  Top diameter: 65mmCup height: 60mmBottom diameter:50mmPower supply380V or 220V, 50HZ, 3PHTotal power10KWCompressor air  0.4m3/minWeight  3000kgs  Overall dimensions  2300  × 1200× 1800mm/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
