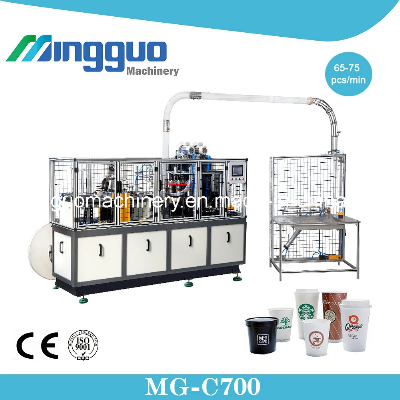

Automatic Paper Cup Machine, Paper Cup Forming Machine

MG-C700 PAPER CUP MACHINETECHNICAL SPECIFICATIONModel MG-C700Paper cups specification4-16oz (100-450ml)(mold exchangeable)T:55-85mmH:60-135mmB:55-70mmAir supply requirement0.5-0.8MPa,0.4cbm/minPaper specification150-350 GSM single/double PE coated paperProduction capacity 60-80 pcs/minVoltage 220V/380V Total Power7KWTotal Weight 3000KGDimensions 2800mm*1300mm*1850mmNote Customized service is available MAIN PARTS BRANDItem Brand Original Main Motor+Gear reducer Tianhong  Knurling motor +Gear reducerTaibang Taiwan Bottom motor +Gear reducerTaibang Taiwan Bottom stepping motor Taibang Taiwan Lubrication Motor Limada Shanghai Touch screenWeichuang Guangzhou RelaySchneiderGermanyExchange partsSchneiderGermanySensor Moron GermanyDriverWeichuang Guangzhou Ultrasonic EVER GREENTaiwanPLC MitsubishiJapanHot heating Leister Switzerland   MACHINE INTRODUCTIONMG-C700, a newly developed paper cup machine, achieves a manufacturing speed of 65-75pcs/min. This piece of paper converting equipment provides a multi-station design and is able to make single and double PE coated beverage cups, ice cream cups, coffee cups, bubble tea cups and more. In addition to that, this integrated automatic paper container forming machine combines all these processing procedures together: paper feeding, sealing, bottom cutting, lubricating, heating, knurling, curling and collecting. FEATUREA. The machine adopts open cam type structure, high precision, large out-put and long life.  B. Longitudinal gear drive. This make up the chain drive jitter and instability's weakness. C. Whole machine is box type structures design, filling oil by spray lubrication system So that it can run fast and stably.  D. Photoelectric failure-detecting system is available. PLC control system for the whole cup forming process.   E. Servo control to send bottom paper of cup, deliver bottom when cup tube come, otherwise no bottom delivery.  F. Stretch knife uses for bottom cutting. Easy changed and more stable.  G. Switzerland Leister heating device is equipped for cup body and bottom sealing, bottom are heated at first before they are feeding, thus improving heating effect and helping guarantee knurling.  H. The knurling device adopts hardening treatment,make up the cup knurling more beautiful and increase it use life.FactoryCERTIFICATESAMPLES /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
