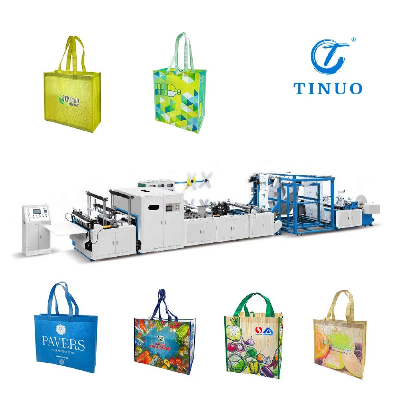

Non Woven Box Bag Making Machine with Handle Attach

NON WOVEN BOX BAG MAKING MACHINE WITH HANDLE ATTACH 1.Schematic diagram2.Bag samples3.Fully Automatically Nonwoven Bag Making Machine Procedure  Raw material autofolding -> Bag month folding -> Thermal bonding -> Side folding -> Bottom sealing ->Bottom edge cut -> Online impression -> Loop handle fix -> Thermal bonding -> Bag cut -> CollectionThis machine is our latest design. It can make box type non woven bag with loop handle automatically.This machine takes non woven fabric as material, it also can make other different kinds of non woven bag, such as non woven flat bag, normal handle bag, vest bag, rope wearing bag, laminated non woven bag etc. This machine adopt touchscreen controller. You can easily adjust the bag size and loop handle size. It's an ideal machine for box type non woven bag production.4. Machine Technical DataSNItemSpecification1Roller width1250mm2Bag making speed40-100pcs/min3Bag length100-800mm4Bag Height200-580mm5Max Gusset180mm6Power supply220V 50Hz7Total power23KW8Rated power18KW9Overall sizeL 13500* W 2600* H 2000mm10Weight of Machine4500KGS (40HQ*1 and 20FT*1)11Handle length380-600mm12Handle  width25-30mm5.Main Equipment And DescriptionSNItemManufacturerQtySpecification1Feeding Unit OUNUO MADE1SETThree material feeding: non woven fabric roller, film roller, zipper roller.2Horizontal traction unitOUNUO MADE1SETBag mouth folding3Vertical fold unitOUNUO MADE1SETBag side folding 4Roll feeding OUNUO MADE1SETAuto tension control, centralization-5Roll diameter  1SET1000mm Roller control device 1SETφ3″(φ76mm)Air Shaft 6Roller control device   Magnetic power tension 7Correcting deviation device   Automatic EPC system8Automatic shutdown system  Automatic tracking control9Converter MotorSUCHUAN, SHANGHAI3SETS1.5KW10Direct Current Motor GUANGDA, RUIAN1SETS 11Stepping  Motor SOYO, WUJIN8SETS 12Ultrasonic OUNUO MADE7SETS55MM13Ultrasonic OUNUO MADE1SETS200X100MM14Ultrasonic OUNUO MADE2SETS300MM15Ultrasonic OUNUO MADE4SETS30X30MM16Temperature control systemCHINA1SET 17Operation  MANUAL TOUCH18RelayCHINT,CHINA  19InverterDOVOL, TAIZHOU2SETS 20Pneumatic componentAIRTAC,TAIWAN  21Temperature gaugeSHANGHAI1SET 22Switch GERMAN   23Touch Screen(PLC)WEINVIEW ,TAIWAN1SETS   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
