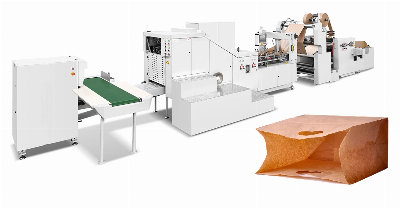

Price Automatic High Speed Square Bottom Paper Bag Machine (Die Cut Handle)

Product DescriptionThe  machine is used for roll raw color paper or printing roll paper such as kraft paper, food paper and other paper rolls by the machine once complete the paper bag process. By automatic paper roll tension, coil correction, Paiqi bag positioning on the glue patch, center on glue, printing bag tracking. Raw materialinto into a barrel, Paiqi bag buckle hand hole, fixed long cut, bottom indentation, bottom folding bottom, bottom on glue. The bottom of the bag is formed, the finished bag is finishing once completed. Native operation is more convenient, more efficient, more stable, is the production of a variety of different paper bags, leisure food bags, bread bags, dry fruit bags and so on environmentally automatic fully automatic paich bag paper bag machine equipmentSchematic Diagram   ParameterParameter NameDC-330DDC-450D Cutting Length 270-530mm270-530mm Bag Width 120-330mm210-450mm Bottom Width 60-180mm90-180mm Paper Thickness 60-150g/m^280-150g/m^2 Machine Speed 30-220pcs/min30-180pcs/min Production Speed 30-200pcs/min30-160pcs/min Paper Roll Width 450-1050mm590-1290mm Patch Bag Width 190-330mm220-450mm Patch Handle Length 75/85mm75/85mm Paige Bag Paper Thickness 80-150g/m^280-150g/m^2 Paige Bag Film Thickness 40-70μm40-70μm Paige Bag Roll Width 130mm130mm Paige Bag Roll Straight 500mm500mm Patch Bag Speed 30-130pcs/min30-130pcs/min Roll Paper Diamter 1200mm1200mm Machine Power 3phase 4line 380v 40.6kw3phase 4line 380v 40.6kw Machine Weight 9000kg9000kg Machine Size 12000x3750x2000mm1300x3750x2000mmSampleDetails√ Use France SCHNEIDER touch screen human-computer interface, making the machine easy to operate and control.√ Adopt Germany original LENZE PC control, integrated with optical fiber. Thus ensure stable and high speed running.√ Adopt Germany original LENZE servo motor and German original SICK photoelectric eye correction, tracking printing bag accurately.√ Patch bag function adopts a complete set of German original LENZE servo motor. Through integration with optical fiber,  it works with the German original Rexroth motion controller (PC).√ Automatic hole-punching adopts Germany original LENZE servo motor.√ Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.Company ProfileOur HistoryIn 2010, in response to global environmental protection and green packaging, we started open up a new field of non-woven machinery, becoming the first choice of customers. During the past many years, TINUO specializes in manufacturing non-woven bag making machines, paper bag machines, printing machines and different machines in packaging & printing industry. In 2020, we made timely adjustments to the challenges posed by the epidemic. Since 2021, we have constantly updated our products to make them more intelligent and environmentally friendly to provide the best quality, greenest and most cost-effective solutions for the whole packaging industry as well as each of our customers and always uphold the win-win cooperation concept.Our FactoryWe have a factory with a professional R&D team and production team to manufacture more advanced intelligent machines. In the production process of bag making machines, we pay attention to every detail and quality control of the production line. Our large investment technology allows us to produce parts that meet the exacting standard required to build a precision machines.Our Advantage1.China Top 3 packaging machinery Manufacturer2.We have 12 years of experience3.We have more than 80 patents4.We are willing and able to customize machines5.Our sales volume is the first place in the worldOur CertificateClosely with international advanced technology production technology, TINUO has more than 80 patents, due to the changing of market demands, we willing and able to customize the machines. All production from us have passed ISO9001:2000, CE, B.V, SGS and GMC. With rich technology and capital resources, we pay high attention to the new product innovation.Our ProductNON-WOVEN PACKAGE MAKING MACHINERYPAPER PACKAGE MAKING MACHINERYPLASTIC PACKAGE MAKING MACHINERYPRINTING MACHINERYLAMINATING MACHINESSLITTING MACHINESGENERAL PACKAGE MAKING MACHINERYAfter sales service Q & A--How to install the equipment?--Due the corona breakout in global, the seller would not arrange engineer outside to install, all the service would change to online service.--If the corona finished,how to install? And how long it will last?--The seller will send 1 engineer to install, test the machine and train customers' workers in buyers' factory.It will take about 1 week for the entire installation and training.--What are the additional costs of installation?--The buyer should cover engineers' salary, visa cost, Round air tickets, accommodations, transportation in buyers' country, food, medical care, safety cost, and related cost happens in buyers' country. Also, the buyer should prepare enough labor, electric wire outside the control panel and tools for installations.--What a
