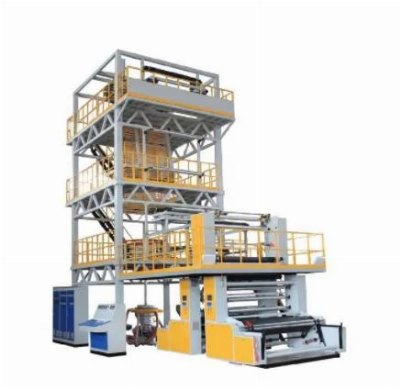

3 Layers High Speed Plastic Co-Extrusion Film Blowing Line Machine Price

Product DescriptionBiodegradable Mulch Film Blowing Machine3 layers high speed Plastic co-extrusion Film Blowing LineDC-Z50X30X2+65X30X1-1600mm Feature1. Valid film lay flat width: 600~1300mm2. Film thickness: the best scope 0.03~0.15mm3. Raw materials: LDPE; LLDPE; HDPE ;MLLDPE ,and EVA ;4. The structure of film: ABC;5. Film tolerance: ≤±7%(when the thickness is 0.07mm)6. Output: about:100-160kg/h, depending on resin and product dimensions7. Extrusion output:310kg/h8. The total power capacity:155KW ,380V/50HZ9. Line outer dimensions: 11500x5500x9200mm (L x W x H)10. The weight of machine: 22000kg11. Painting :first wash and clean and polish smooth,Second anti rusty painting, paint final color twice Extruder: (3 Sets)1.1 Screwa. Diameter: 50mm; 65mm; 50mmb. L/D ratio: 30:1c. Structure: separating, barrier and mixingd. Material: 38CrMoA1A,e. Heating treatment: forging, heat treatment and nitrification, bimetallic;1.2 Barrela. Hole diameter: 50mm; 65mm; 50mmb. Material: 38CrMoA1A,C. Heating treatment: forging, heat treatment and inner hole nitrification, bimetallic1.3 Max. screw rotating speed: 110r/min1.4 Forced water chilling for feed section of barrel, adopted ceramic heater with inner cooling structure for transmission, measure and mixing sections.1.5 Barrel heating zone: three/four zones1.6 Barrel cooling blower: 240x3sets/370Wx4sets/240x3sets1.7 Gear box, JY173/225/173#a. Gear type: standard involute cylindrical skew wheelb. Material for gear: 20CrMnTi, through high frequency quenched treated and precise grinding.c. Lubrication wary: forced all cycle lubricationd. Cooling way: force water cycle cooling for oil temperaturee. Oil filtering way: disassemble outside oil filter with cooler1.8 Extruder main motor: 22KW/37KW/22KW; SIEMENSE brand1.9 controlled by EURA inverter1.10The max. extrusion of ¢65mm is 130kg/h;The max. extrusion of ¢50mm is 90kg/h;1.11 Stainless hopper: 75kg/p Screen changer: 3 sets2.1 With domestic melt pressure and temperature sensor before changer,3 sets Die head(IBC system) & Chiller: 1 setIntroduced advanced technology from Germany, designed by CAD, use imported German TC2.8K four-axis simultaneous machining center to produce spiral die. The die will be with features of high precision, good finish and no deformation. 3.1 Basic Structure: 3 layer spiral type3.2 Die Material: All made of 40Cr alloy steel.Through forging, heat treatment , processed in 5 axis machining center ,then applying advanced polishing technology to make the dies surface as smooth as mirror. To ensure the flow channel evenly distribute materials and make sure that there is no stagnation area in the products, dies are further processed by non-electrolytic nickel plating, wear resistance and corrosion resistance of the dies are also enhanced.3.3 Diameter: Ф250~320mm.3.4 Cold state die clearance: 2.4mm3.5 dual display automatic temperature control3.6 Heater: cast aluminum heater3.7 Heavy loading trolley frame to fix dieLifting unit for air ring, die ring die mandrel3.8 IBC system (Optional parts)IBC (ultrasonic closed-loop servo-control) system consists of gas exchange device, internal cooling air ring, in and out air blower, signal detection and control circuits, etc... The system not only can rapidly cooling bubble, exhaust inner heat, water molecules and emissions of bubble,but also can supply new cooling air, lower the inner temperature of the bubble, increase the output and improve the mechanical properties of films and so on.3.8-1 Bubble Internal Cooling Gas Exchange Device: One set3.8-2 Bubble Internal Cooling Control System: Mitsubishi PLC control system3.8-3 Bubble Detection Sensor: Three sets, ultrasound detection sensor, from Germany P + F,3.8-4 Inlet and outlet air blower: 2 sets, 7.5KW centrifugal blower, control by EURA frequency converter. 3.9 Chiller 1 set (Optional parts)3.9-1 Cold water machine + cooler exchanger 2 sets3.9-2 cooling capacity: 49966Kcal/h (58.1Kw)3.9-3 Compressor power: 8.96*2KW3.9-4 Temperature control range: 5ºC-35ºC3.9-5 voltage: 3PH~380V 50HZ3.9-6 refrigerant: R223.9-7 In-out water: 2"(inch)3.9-8 Condenser type: efficient finned tube type3.9-9 Evaporator types: efficient coil type3.9.10 Water chillers main configuration list Serialnamebrandorigin1compressorDanfossThe Danish2Electrical componentsSCHNEIDERFrance3pumpYLTaiwan4evaporatorDANNICEshenzhen5condenserDANNICEshenzhen7Pressure controllerFENGSHENTaiwan9Oil type pressure gaugeHONGSENTaiwan11temperature controllerBangpuTaiwan12Expansion valveEMERSON/ALOOThe United States13Hand valveFUGUOTaiwan Precision dual lip automatic air ring: 1 set4.1 Structure: the out air orifice be adjusted according to the processing4.2 Material: cast aluminum4.3 Blower power: 11kw, 1 set, controlled by EURA inverter.Take off unit and -oscillating rotating system &EPC systemTraction system reverses horizontally for ± 360 °, to ensure that the film maintains a constant linear velocity. The driven system, collapsing unit, traction devices and film rot
