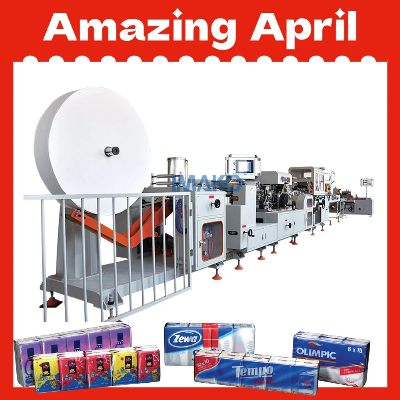

Product DescriptionTechnical Specification1. Handkerchief Format A. Single handkerchief unfold size: Square: 200mm± 2 mm 210mm± 2 mm B. Single handkerchief Fold size: Mini: 72 mm± 0.5 mm× 53.5 mm± 0.5 mm (L*W) Standard: 105mm± 0.5 mm× 53.5 mm± 0.5 mm (L*W) C. Side embossing is symmetrical and tolerance is 5 mm 2. Machine Size: 1610*2000*2000. Mm (L*W*H) 3. Electric power: 30.5KW 4. Bundling Unite Specification A. Packing speed: Design speed≤ 25/, Product speed: ≤ 20/; B. Packing size: Length: 75mm-105mm; Thickness: 24± 2mm; Width: 50mm± 2mm; Bundling style: : 2X3; 2X4; 2X5; 2X6; 3X3; 3X4; 3X5; 3X6. C. Power: Supply: 380V± 38V, 50Hz± 1Hz D. Total power: 2.5Kw E. Main machine power: 0.25Kw F. Main air pressure: 0.6Mpa G. Bundling unite size and weight: 2300X1250X1450mm (L*W*H), 1000kg 5. Material requirements A. Parent paper roll: Diameter≤ φ 1600mm, width 420mm, core diameter φ 76mm GS 13.5~15.5G/M2(triple), 16~18G/M2(double); B. Film: PE with thickness 0.045 mm, width 115mm, diameter ≤ φ 460 mm, core diameter φ 76mm, dark color mark (except green), size 4× 12mm, equal distance (single film length)168± 2mm; C. Label: Width: 25± 5mm, equal distance ≥ 2 mm, color should be clear different with color mark. 6. Other requirements A. Main power supply: 380V± 38V, 50Hz± 1Hz; 24 VDC; B. Compressed air: Pressure≥ 0.6 Mpa, flow rate≥ 48m3/h; C. Nagtive pressure: Pressure≥ 0.06 Mpa, flow rate≥ 480m3/h(roots vacuum pum, no need water). ItemsGuaranteeProduct guarantee speed 120 packs/minQualification rate≥ 97 %effective productivity≥ 85 %Handkerchief quality1. Use surface is positive,few and short fold;2. Cutting side is smooth, no black and burr;3. Regular fold, derangement is≤2 mm,no inner fold and backslash;4. Handkerchief format tolerance is ±3 mm;5. Side embossing is symmetricaland clear, no delaminating.Packing result1. Handkerchief tissue inside is neat and the tightness is the same. The surface is smooth, square and symmetrical ;2. The sealing is firm and no hole. Tip triple is symmetrical and good look. Open part is no broken hole or stick with tissue. Film cann't discolorate, no pollution tissue.3. Virtul line is in the middle, tolerance is ±2 mm,easy to open.4. Label position is in the middle of virtul line,left-to-right tolerance is ±2 mmand up -to-down tolerance is ± 1mm. Stick is firm, no inner fold and backslash.Wastage of parent paper roll, label and film ≤3%Control systemCompletely self-contained, run stablyCompany ProfileIMAKO is a company entirely focused on the manufacture of automated packaging equipment for household paper industry. We always aim at developing user-oriented innovative solutions for worldwide tissue paper convertors to solve their tissue paper production and toilet paper packaging needs. To become a global packaging machine manufacturer, we also provide full automatic toilet paper production line, tissue napkin production line, handkerchief production line, hand towel production line,with rewinder, folder, cutter, single packer, bundling packing machine, case packing machine and robot palletizer. we also provide packaging solutions for personal care products like baby diaper packaging machine, wet wipes packaging machine and sanitary pad packaging machine that are built to deliver easy operation, high productivity, quick size changeover and simple maintenance. Our mission is to innovate our technology to meet the future market changes and challenges, constinuously improve efficiency to help customers solve production problems. From design, production, solutions to services, we strive to provide you with satisfactory experience and to become your long-term partner. We remember that without the trust of our customers, we would not be here we are today.Paymentterm:T/T,L/C,30% down payment when placing your order, 70% balance payment before shipment.Delivery: It depends on the machine models and your requirement on packing sizes.Usually within 30 days of Off Season , within 50 days of peak season upon receiving depositAfter service: Seller would repair or replace the damaged parts free of charge caused by the machine poor design or manufacturing defects within this period.Guarantee period is not applicable for the consumables and once damaged, buyer can purchase the consumables from the seller at reasonable prices.We would systematically train your engineers about the operation, maintenance and supervision and share the knowledge and experience regarding the machine operation and maintenance by fax or at each visit. If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation.Besides buyer need paid for the technician USD50/person/day as salary when our Technician going to your country. FAQ Q 1. Where is your factory located?A: Our factory is located in Shantou city,Guangdong province,China.Which is a beautiful coastal city in the South-eastern of China.The a
