Food Computer Control Panel Paper Machinery Bowl Sleeve Forming Machine

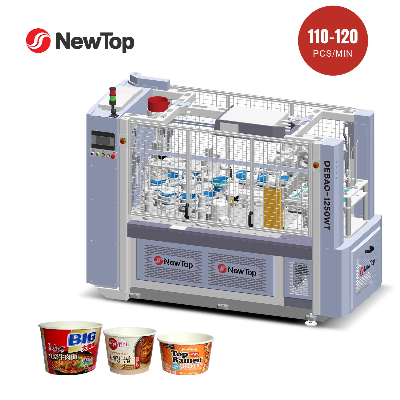

Configurations & SpecificationsZHEJIANG NEW DEBAO MACHINERY CO.,LTDDEBAO-1250WTMechanical BehaviorDEBAO-1250WT high speed intelligent paper bowl sleeve machine is using tabletop layout, which isolates the forming parts and transmission parts. All transmission parts are installed in the main frame under the table, using longtitudinal shaft, barrel indexing cam and gear transmission, lubricated by oil bath. The forming parts are installed on the table, easy to access for cleaning and maintainance. Machine is controlled by PLC, the whole process is monitored by photoeletric sensors, glue sprayed by servo. Machine is good for making 16-44oz sleeved paper cup. It is an ideal equipment for making different types of sleeved bowls.Machine Specifications  ModelDEBAO-1250WTWeight2600KGPacking specifications2700*1300*2100Total powerthree-phase 380V,5KWAir supply0.5-0.7MPa,0.4cube/minCapacity110-120 PCS/MIN 0.28-0.41mm(±0.01mm)Paper cups specificationsD1)Φ90-150mm  H)φ70-110 mm  D2)Φ40-120mm   h)φ5-12mm  Mechanical Quality Guarantee1.Mechanical parts are guaranteed for 5 years, electrical parts and vulnerable parts are guaranteed for 1 year.2.All parts on forming table are easy to access for maintenance.3.All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil.Production Efficiency1.Production output up to 57,600 cups per shift (8 hours), up to 4.5 million cups per month (3 shifts);2.Percentage of pass is higher than 99% under normal production;3.One operator can handle several machines at the same time.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
