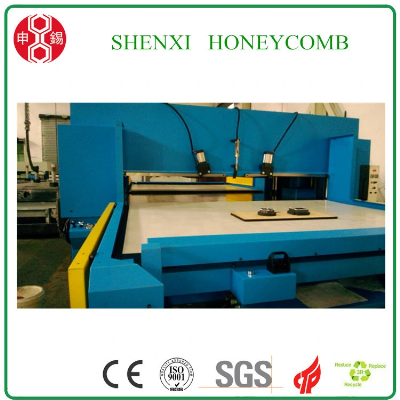

Honeycomb Die Cutting machine

Honeycomb Paperboard Die Cutting Machine  Introduction: Honeycomb Paperboard Die-cutting machine,  used to punch different shape of full holes/ half holes on honeycomb paperboard.Features: Cut any shape of holes on honeycomb board, thickness from 10-60mmPunch complete holes or half holes on honeycomb paperboardHydraulic pressing, 40-100 tons of cutting pressure according to cutting area and thicknessWe can make it automatically working in honeycomb board feeding, cutting, lifting and output .  No.ModelCY-40-1200/12001Effective size of cutting(mm)1200MMX1200MM2Max. die-cutting height of honeycomb board60mm3Qty of hole cutting in one time1-25 holes4Drive system for die-cutting40tons, hydraulic5Lifting height100-300 mm6Qty of Guide Pillars47cylinderdiameter110X200mm, 2sets8Die- Cutting depth1-60mm( adjustable)9Weight (tons)2.8 tons10Power  (oil pump)2.2kw 11Dimensions 2000x1600x1600mm  No.ModelCY-60-1200/16001Effective size of cutting(mm)1200MMX1600MM2Max. die-cutting height of honeycomb board60mm3Qty of hole cutting in one time1-25 holes4Drive system for die-cutting60tons, hydraulic5Lifting height100-300 mm6Qty of Guide Pillars47cylinderdiameter 110X200mm, 2sets8Die- Cutting depth1-60mm( adjustable)9Weight (tons)4  tons10Power of oil pump5.5kw11Dimensions 2000x1600x1600mm  No.ModelCY-60-1600/16001Effective size of cutting(mm)1600MMX1600MM2Max. die-cutting height of honeycomb board60mm3Qty of hole cutting in one time1-40 holes4Drive system for die-cutting60 tons, hydraulic5Lifting height100-300 mm6Qty of Guide Pillars47cylinderdiameter 110X200mm, 2sets8Die- Cutting depth1-60mm( adjustable)9Weight (tons)4  tons10Power of oil pump5.5kw11Dimensions 2200x1800x1600mm 80T: 7.5100T:11KWFOB SHANGHAI:CY-40-1200/1200:   USD 10000CY-60-1200/1600:    USD 12000CY-60-1600/1600:     USD  14000  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
