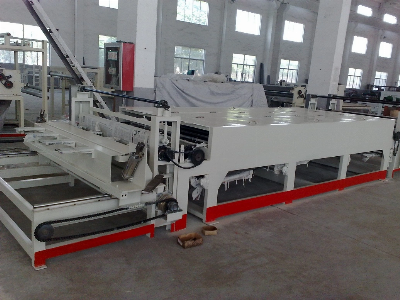

Honeycomb Expanding/Die Cut Machine

This machine is used to expand, dry and cut paper honeycomb into required size. It's widely used in furniture industry.Machine honeycomb expanding machineTypeHCM-1300-EconomicHEM-1300-StandardHEM-1300-DeluxeLargest Input width1600mmLargest Output width1200-1300mmThickness of honeycomb10-10mmPaper120-180g/m2Cell size8-40mmTemperature controlSet manuallyControl automatically(0-200 Celsius )FunctionExpanding, Heating, Trimming and Cutting(Stop and cut)Expanding, Drying, Calibrating, Trimming and Cutting( synchronous cutting) Max. Designing speed6m/min8m/min.12m/min. Actual Speed(3" thick,25mm cell size impregnated paper honeycomb )0-2m/min   0-4m/min.0-6m/minOven2800mm in length Three sets of electricity heating pipes Control automatically   4650mm in length Three sets of electricity heating pipes Control automatically8000mm in length Three sets of electricity heating pipes Control automatically Equipped with Blower Hot-Air circulationElectric power18KW 60KW80KW controlPLC (Delta)Human-machine interfacePLC(Delta)  ControlTouch Screen settingTrimmerTwo sides trimmer Width can be adjustedDie-Cut systemGuillotine automatically Cut any length put in HMIsynchronous cutting at high speed production Adopts Linear guide way Cut any length you type in touch screen Manually cutting supportedDimension4500X2000X1350mm7000X2000X1350mm11500X2000X1350mmAir supply4-6kg/cm3Heating methodElectric heatingVoltage380V/50HzRemarksTailor made is availableYou can also choose the function and configuration according to your personal needs
