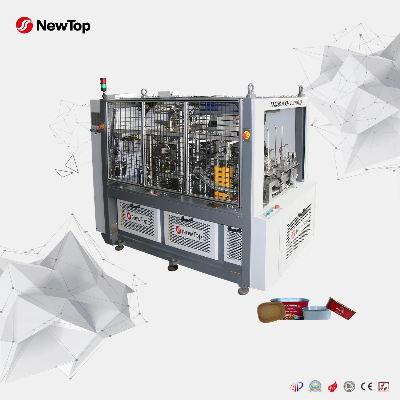

Intelligent Paper Cup Machine Double Wall Paper Bowl Machine (Debao-1250D)

Mechanical BehaviorThe DEBAO-1250D high speed intelligent paper cup machine is using tabletop layout, which isolates the forming parts and transmission parts. Alltransmission parts are installed in the main frame underthe table,using longitudinal shaft, barrel indexing cam and gear transmission. The forming parts are installed onthe table, easy to access for cleaning and maintenance. Machine. is controlled by PLC, the whole process ismonitored by photoelectric sensors,feeding by servo. TheDEBAO-1250D is good for making non-round type cold/hot bowls. Ractangle ones have eight standard sizes can be chosen from. Machine parameter  ModelDEBAO-1250DWeight3400 kgMachine encasement dimensions2850 x 1650 x 2250mm (collection table 1230 x 720 x 1900mm)Connecting powerthree-phase 380V,29KWCompressed air0.6-0.8MPa,0.6m³/minProduction capacity70pcs/minPaper typessingle PE/double PE/PLAPaper thickness 0.38-0.5mmProduct rangeSquare     (D1)ф95-165mm (H)50-110mm(D2)ф85-145mm (h)7-10mmRectangle(D1)ф105-170mm (H)50-110mm(D2)ф105-160mm (h)7-10mmcontrol panel10.2 inches    Mechanical Quality Guarantee1.Mechanical parts are guaranteed for 5 years, electrical parts and vulnerable parts are guaranteed for 1 year.2.All parts on forming table are easy to access for maintenance.3.All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil.Production Efficiency1.Production output up to 67,000 cups per shift (8 hours), up to 4.5 million cups per month (3 shifts);2.Percentage of pass is higher than 99% under normal production;3.One operator can handle several machines at the same time./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
