Plastic Film Paper Rolls Laminating Coating Machine

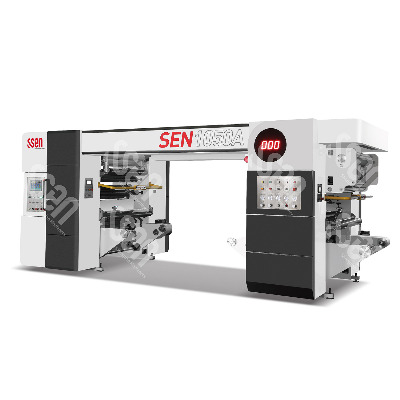

SEN-1350A Plastic film paper rolls laminating coating machine This machine is suitable for different types of film, paper and aluminum foil's high-speed laminating, with advantages of high efficiency, good performance, the product without solvent residue and so onAdvantages:1. Tension control system:uses dancing roller systems with Japanese Fujikura low friction pneumatic cylinder control.2. Coating part gap system: The gap between scraper roller and metering roller check the initial coating amount, it is adjusted byJapan brand ball reducer and the adjust precision is ±0.001 mm (1 micron), operators don't need to readjust the gap after cleaning as the pointer will automatically get back to the original gap. Its much more convenient and save time for operators.3. Coating part, metering roller and transfer rubber roller, each use 1 servomotor+ servo driver controlled. Its more accuracy in coating amount control;4. Machine structure, we use 80mm thickness solid steel, machine weight 14-15tons, strong machine body to make sure more stable high speed working.5.Unwinders and rewinder are all use shaftless type auto Loader, with 3 and 6 inch core adaptors.Optional devices:Mono component glue machineCorona treater deviceSiemens Servo motor system /Allen-Brad ley USA electric system for optional.Main parameters:Printing Material's wayLeft to rightMechanical Speed580m/minMax Laminating Speed500m/min(The maximum production speed will be affected by the quality and properties of the substrate and binder used)Max coating width 1050mmMax roll width1050mmMin roll width400mmUnwind paper core3''=76mm and 6''=152mmRewind paper core 3''=76mm and 6''=152mmUnwind tension range3--40kg(400N)Rewind tension range4--55kg(550N)Rewind tape tension setting range100%--60%Max roll weight1,000kgCoating range0.8-3g/smDimension5100x3600x2500MMPower53KWWeight14000KGMachine colorIvory whiteMachine photos:Zontai in Exhibition:More detail information, you can contact us./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
