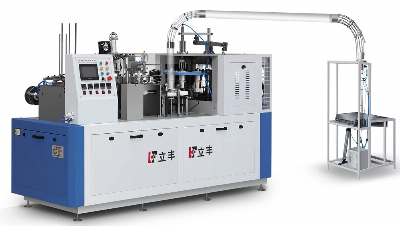

.Advantages1.Different from other normal paper cup machine, ZBJ-NZZ has special square steel structure (8CM wide stronger steel) and good quality, which are much stable when running.2. All machine only use shaft and gear system ,but not chain system .3. Intelligent design, PLC automatic control, full-automatic failure warning, counting, detection, stopping, and etc. (optional) A. the main motor use the best gear reduction unit; B. two times bottom paper feeding; C. operate panel use touch screen controlled.Introduction of Function and Procedure1. The bottom paper is sent by stepper motor, which controls the interval of bottom papers about 0.1mm, so that the machine performs more stable and paper-saving. Meanwhile, the machine is equipped with the optical eye which will send the bottom paper only if there is paper cup body, so that it save a lot of raw material.2. The inner structure adopted the vertical axis gear drive system, avoiding chain loosening and malposition problems.3. Automatic lubrication system, which reduces the friction of machine parts and improves the machine maintenance4. The machine is equipped with optically controlled non-contact switch(such as on the paper holder, cup body, bottom paper and cup discharging etc, customized if possible), checking and auto alarming, thus, the switch can protect the machine parts from crashing, increases the stability and maintenance of the machine.5. Paper feeding working station is driven by cams without noise, performing stable and well, which is pioneer technology at home.6. The machine adopts the gear motor in replacement of the separate reduction box and motor, makes the drive system simpler and more stable.7. Automatic paper cup collectingin the sixth working position that increases the efficiency.If you are interested in, please contact me: 86-13587572818 /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
