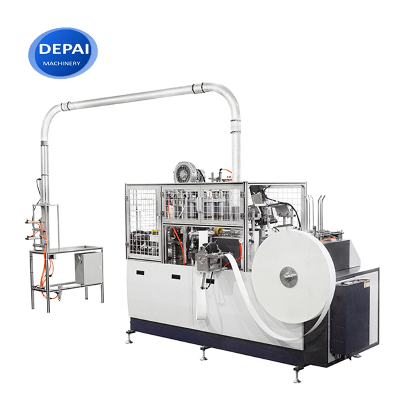

Automatic Paper Cup Disposable Milk Glass Making Machine

Automatic Paper Cup Disposable Milk Glass Making MachineDP-MS-12 paper cup machine is an automatic machine with multi-working station,which runs a procedure of single pe coated paper cup fan feeding,cup side welding(by heater),silicone oil lubrication(for cup curling),bottom punching,bottom preheating,bottom folding,bottom knurling,top curling and cup discharging.It has the function of photocell detection,failure alarm,with the advantage of humanism design,safe operation,easy maintenance and durable running.It is an ideal equipment of making disposable paper cups for all types cups (hot and cold drink,coffee,tea,ice cream cup an so on).Working Procedure ExplanationTo produce the cups, a special cardboard paper with one-side or double side PE lamination is used. Pre-cut paper is feeding automatically to a cone mould, and then the two edges are welded by ultrasonic without any glue. And at the same time, the bottom paper roll is die cut and fed to the cup, then, the cup bottom is preheated and folded with the bottom paper, and goes to the next station, heating and then knurling, then next station is cup top curling and at last the paper cup is finished and delivered.Product Parameters Name High speed paper cup making machine Paper cup size 2oz-12oz mould exchangeable max Cup height:135mm, max bottom width:70mmSpeed 80-100pcs/min Speed affected by cup size, paper quality and thickness 9oz, 280gsm paper cup stable running speed 80pcs/min Raw Material One-side PE coated paper      (popular for hot drink cups) One-side or double-side PE coated paper (Popular for Hot and Cold drink Cups) Power Source: 50/60HZ, 380V/220V ( better to use 380V, 3 Phase ) Total 4kw 6kw Weight 1800kgs Air Source No need Air pressure:0.4Mpa; Air Out-put:0.6m³/minute Cup Side Welding Copper Heater Ultrasonic heater Cup Bottom Heating Heater Knurling 1side PE paper by heater knurling; 2side PE paper by cool device (circle water)knurling   Cup Bottom Knurling Heater Knurling (if use single PE coated paper) Heater Knurling (if use single PE coated paper) Cool Device (circle water), for double PE coated paper Material 140-300gsm coated paper 140-300gsm coated paper  Features1.Paper cup bottom sealing by hot air station.2.It is easy to make cups of different size by changing moulds3.Cup side sealing by ultrasonic system.4.Double PE coating pape cups for cold drink as well as hot drink.5.Equiped with robotic arm and 3 pillar shafts each side,which let the machine run more steady.6.With our unique original designed single shaft bottom knurling syatem,this ensures the low leaking ratio and high quality of paper cups.7.Sucker import from Taiwan,which can reach 100 million times life span.8.Design with special cover,our machine is very good for the heat dissipation and ensure the longer life span.9.All the machine covers could be taken down in 12 minutes,very convenient for repair and daily maintenance. 10.We have 8 cams in the paper cup machines,while others maybe only 6cams.11.With automatic failure alarm system,when no bottom or finished cup is over running,the machine will stop automatically.12.Paper cup body use modified silent clamp system,more accurate and stable.Detailed Photos                                             Paper Fans Feeder                                                                              Bottom Paper                                        Turnable Mould                                                                                    Cup Stacked                                      Welding by Heater                                                                            Welding by Ultrasonic                 (single coated paper cup making machine)                                                             (double coated paper cup making machine)                                        Control Panel                                                                            Silicone Oil Lubrication                                             Ultrasonic                                                                                        Cup CollectorSampleCompany ProfileOur FactorySemi-product WorkshopRaw Material WorkPackaging & ShippingInterior: Wraping Film to keep dry and prevent from rusty Outer: Sea-Worthy Wooden Case to keep machine safe in delivery. FAQ1.Q: What are the raw materials for paper cups ?     A: The main raw material that paper cup manufacturers need is wood, which is a renewable resource. The paper used for normal cups can come from forestry all over the world, such as the Amazon, but it can also be forests in Europe that live up to standards of FSC, but do not have the certification.2.Q: How paper cups are manufactured ?     A:  The foodservice paperboard is turned into reels. The reels are printed and cut into carefully measured cup sidewall blanks. The blanks are inserted into cup-forming machines that wrap the blanks into a cup shape and add the bottom. The
