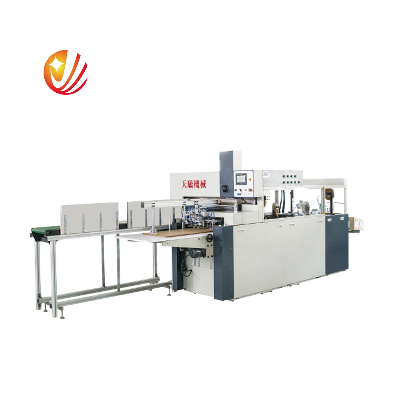

Automatic Book Wrapping Machine

Specification   Max. Book size380*260*280mmMin. Book Size180*130*80mmFace paper thickness80-120gsmAir Pressure0.4-0.6MpaSpeed10 packages/minuteMin. Overlap size0.2mmTotal Power2.5KWKraft tape width35mmMachine Weight2600KgDimension5920*1750*1940mmPower supply380V 50Hz   Features of the machine:Key PointsFast speed with 10 packages per minute, high efficiency and saving labor, one button control.It can be connect with perfect binder machine, saving 1/3 paper than manual packaging.The machine electric costing at 2KW per hour, saving power with low noise. General Introduction:TJ58-2 Automatic book packaging machine replaces the traditional manual packaging, improves the work efficiency and reduces the labor intensity. It provides a fast packaging solution for printing house.   Features by Parts: Feeding part     The book convoying belt is controlled by the gear motor to ensure the stability of feeding. Four lines balls blowing device avoid the bottom page of the book to be scraped, and the separate air pump controls the blowing stability.Face paper conveying adopts flat sheet design with simple structure, feeding by front sucker. The air slide valve adopts Taiwan Airtac with long life.Positioning Part The two-channel conveying design makes it easy for book and paper to cross quickly and allows the book to be quickly positioned on the paper.Face paper position is detected by two sensors accurately. Input the relevant data to the touch screen, the machine is adjusted intelligently.Folding Part The special running space design integrates with the mechanical action of positioning, two sides wrapping, up side forming, saving space and fast wrapping.   Machine running linkage with back side lay, both side lay and push rod, the book completes side and up folding during the forwarder running, chains match rods turning keep movement uniformity and stability, wrapping more compact and artistic.The push lay is controlled by SNS cylinder with stable working.Up stick part  The upper sticking and tightening device, double rubber wheel running opposite, tighten up the paper and sticking at the same time.The surface of the blade is coated with Teflon treatment to prevent surface viscose and prolong service life.3. Independent R&D, patented design sticking structure, can be completed in one second. Side sticking part Folding channel with slope design guarantees up and down sheets folding accurately. The channel is made of stainless steel with long life and stability. Adjust by one button.The belts adopts Taiwan Micro gear motor controls upper and lower belts operation.The sticking tape can be kraft tape or plastic tape.Label pasting.(optional)     Our company patent label pasting device, saving labor and makes labeling stable.2. Suck feeding, pin type pressing and side blowing structure can avoid double paper effectively. 3. Using (107) universal water base gluer and the label thickness should be above 70 gsm, mechanical arm dipping glue, the gluing is accurate and it saves glue. Electric Part No.NameBrandCountry1PLC MTSUISHIJapan2RelayIDECJapan3 ContactorSCHNEIDERGerman4MotorJSCCChina5cylinderSNSChina6vacuum pump ORIONJapan7 transformerJSCCChina  Other Information: The delivery time is 50 days after purchasing order and 30% down payment received.  Payment: T/T or LC The charge of installation , accommodations and air ticket is not included in the price. The subsidy of engineer is $50.00 per day if installation service is needed. Shipment: suitable for the sea transportation. Port of shipment: Tianjin Port, China. Term of validity: Three months/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
