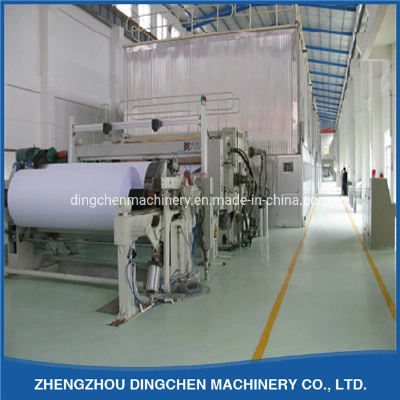

DC-2400mm Fourdrinier Wire Cultural Printing Paper and Copy paper Making Machine I.Technical parameter 1. Raw material virgin pulp board 2. Output paper office paper, writing and printing paper, copy paper 3.Output paper weight 70-80g/m2 4. Net paper width 2400mm 5.Wire width 2800mm 6.Capacity 30ton/day 7.Working speed 120-140m/min 8.Design speed 200m/min 9.Rail gauge 3100mm 10.Drive way A/C converter speed control, section drive. II.Structure and specifications of main equipment1. Fourdrinier part:1 set of 10.83 meters long wire, the wire table coated by stainless steel board, open style head box. 1 set of Φ700vacuum couch roll and other all dewatering units. 2.Press part:1 pc of Φ600mm×2800mm×3100mm natural marble roll, 1 pc of Φ550mm×2800mm×3100mm rubber roll, rubber shore hardness 95ºC±2, pneumatic pressure device. 3.Dryer part:1 pc of alloy dryer cylinder, and 14 pcs of Φ1500×2800mm×3100mm alloy dryer cylinders, arrayed in the order of 1 + 8 + 6, with dry wire device and semi-closed dryer hoods. 1 pc of Φ450mm×2800mm×3100mm reverse paper press roll, 1 pc of Φ550mm×2800mm×3100mm touch roll, rubber shore hardness 90ºC±2, with pneumatic pressure device. 4.Calendaring part and winding part:2-roll calendaring machine, and drum reeler.5.Driving & controlling part: A/C converter speed control, section drive. Company InformationZhengzhou Dingchen Machinery Co., Ltd is a professional paper machine manufacturer integrated with scientific research, design, manufacturing, installation and commission. Focused on R&D and production, the company has over 30 years' experience in paper machinery and pulping equipment production. The company has a professional technical team and advanced production equipment, with over 150 employees and covering an area of 45, 000 square meters.The company's leading products include various types of high speed and capacity test liner paper, kraft paper, carton box paper machine, cultural paper machine and tissue paper machine, pulping equipment and accessories, which are widely used in the production of packaging paper for various items, printing paper, writing paper, high grade household paper, napkin paper and facial tissue paper etc.Based on high quality products and service, the company has been recognized by overseas customers and markets, its products has been exported to Pakistan, Uzbekistan, Turkmenistan, Bangladesh, Cambodia, Bhutan, Israel, Georgia, Armenia, Afghanistan, Egypt, Nigeria, Kenya,Burkina Faso, Sierra Leone, Cameroon, Angola, Algeria, El Salvador, Brazil, Paraguay, Colombia, Guatemala, Fiji, Ukraine and Russia etc. Packaging & ShippingOur Services FAQ /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
