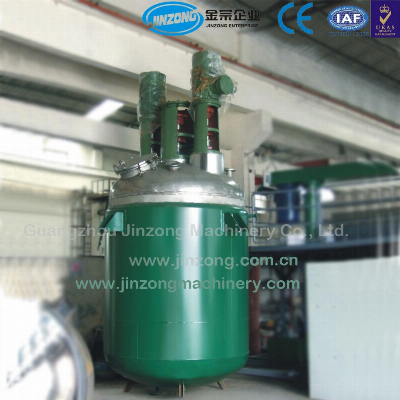

Multifunctional Reactor with Wall Scraper and Hi-Speed Dissolver

1. Chemical Processing Machine: Multifunctional Reactor1.Heated by electrical heating tubes with Jacket2.Cooling via water in internal spiral coil or jacket3. One or two high speed disperser and one low speed stirrer4. Application: high viscosity prouctChemical Processing Machine FS series Multifunctional Mixing Dispersing Tank is integrations of powerful mixer and high speed disperser, which is applicable for mixing, dispersing, dissolution and color mixing of medium/high viscosity and thixotropy materials. Mixing and dispersing can proceed simultaneously and reach ideal effect. It is ideal mixing and dispersing equipment which is easy to operate and widely applicable.Operating principle: Break down or recombined the materials through mixing, filling and cooling, to promote the reaction of polymerization.Components: Body, gears, mixing devices, heating devices, cooling devices, seal, etc.Auxiliary Equipment: Distillation column, head tank, condenser, water separator, collecting cans, filters, etc..Widely used in: Resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.Applicable Field: All the liquid-liquid, liquid-powder reaction industry. Instruction:1).Reactor kettle is the main chemical react production equipment, which is widely used in resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.2).Break down or Re-combined the molecule through mixing, Heating, cooling, Vacuumize, etc.  Suit for polymerization, hydrogenation, vulcanization, nitration,etc. The reactor is made up of body vessel, jacket vessel, gears, mixing devices, heating devices, cooling devices, seal composition,etc. The auxiliary equipment:Head tank, distillation column, condenser, water separator, collecting cans, dilution tank, filters ect.2. Specification of Multifunctional ReactorModel#FS-2FS-3FS-5FS-6FS-8FS-10FS-12Volume of Tank(m 3 )235681012Power of Mixing Motor(kw)5.55.57.57.5111518.5Speed of Mixing Shaft(rpm)50505050414141Dia. of Mixer Blade(mm)1300150017001700190021002300Power of Dispersing Motor(kw)13/1613/1622/2822/2822/2826/3430/42Speed of Dispersing Shaft(rpm)960/1450960/1450960/1450960/1450970/1470970/1470750/1480Qnty. of Dispersing Shaft2222222Dimension(mm)D1400160018001800200022002400H1650176520482400280029503100H119302000220022002500257026203. Mixing system for reactorMixing system is the core component of reactor, a cutom-made stirrer is your key to success. stirrer selection is related with the material's viscosity, liquid-solid ratio, proportion of liquid, solid's internal pipe coil etc.4. Reactor Series The reaction kettle is widely used for reaction, evaporation, conectration, synthesization, polymerization, mineratization, etc. in chemical industry, medecine, dye, pesticide, organic synthesis, petroleum,food additives, industry of national defense and scientific reserch. Our company is an enterprise specialized in designing and manufacturing reaction kettles, we can design and manufacture various types of reaction kettles for users.Model selection reference of reaction kettleCompositionInstructionsSpecification (L)50-50000Design Pressure (Mpa)Atmospheric Pressure or under pressureMaterialCarbon steel, stainless steel, enamel, graphiteHeating FormsElectrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc.Cooling FormsRefrigeration medium in the internal pipe jacketBlending PowerModel selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil.Stirring blade FormsAnchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound typeSealMechanical seal or stuff packing sealInner Surface TreatmentPolished or no polishedDischarge ValveFlanged ball valve, open downward discharge valve and othersTechnological Pipe HoleManhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, mouth, mouth filling N2,*After-sales service:1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free. 2> Provide professional after-sales service engineers to  abroad  installation and debugging. *ONE-STOP SERVICESAccording to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services *Providing technical support in the aspects of field commissioning and running of the products sold. *Field failure diagnosis and maintenance. *Providing spare parts and fittings, maintenance and servicing plans. *Choosing Jinzong Machinery is choosi
