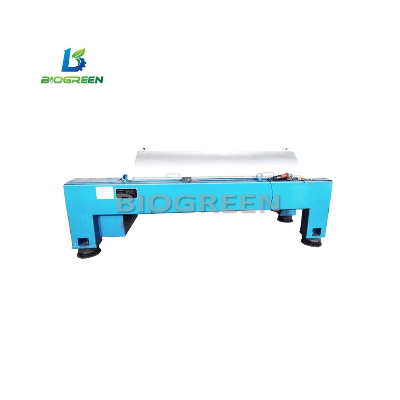

Horizontal centrifuge principle: The feed suspension is introduced through an inlet pipe into the feed zone of the conveyor where it is accelerated and directed into the interior of the bowl. The settled solids are conveyed axially towards the small end of the bowl by means of the screw conveyor, which rotates at a slightly different speed than the bowl. On the way to the discharge ports the solids are lifted out of the pond up along the dry beach. The solids are finally discharged from the bowl through the discharge ports into the collecting chamber of the casing that surrounds the bowl. From there the solids are removed by gravity through the outlet funnel. The liquid phase forming a hollow cylinder due to the centrifugal force, and flows towards the large end of the bowl. There the liquid overflows adjustable plate dams into the centrate chamber of the casing and is discharged by gravity. Horizontal centrifuge characteristics:All parts coming into contact with the product are made of stainless steel.3-phase AC motor for controlled torque starting via frequency converterBowl speed is adjustable via VFD to obtain the required G-force for optimized separationPond depth in the bowl is adjustable for optimized balance between liquid clarity and solids drynessConveying speed is adjustable for optimized balance between liquidLow personnel costs due to continuous and automatic operation.Highest g-force for higher solids outputAutomatic adjustment of differential speed via VFDTwo motor driveBelts for both primary motor and secondary motorApplication:Drilling mud, environmental protection sewage, oily sludge, cutting fluid, sand washing water, mineral washing water, soda whitemud, salt mud dewatering, magnesium aluminum emulsion, steel-making wastewater, precision casting wastewater, constructionmud, tunnel mud, mine wastewater, industrial wastewater, organic wastewater, aquaculture wastewater, chemical industrialwastewater, printing and dyeing wastewater, municipal sewage, river sludge, water plant sludge, lake sludge, kaolin grading,calcium carbonate, bentonite, Silica, titanium dioxide, calcium sulfate, barium sulfate, conductive film glass polishing solution,aluminum hydroxide, cryolite, silicate, oil sand separation, landing oil, oil sludge, coal tar, inorganic fertilizer, Chinese medicineextraction such as taxus chinensis, honeysuckle and liquorice, clarification, concentration and dehydration of salt crystals, Pineapple stem solution,Separation of fruit juice,etc.Equipment parameters: ModelBowl speed(rpm)Separation factorCapacity(m3/h)Solids removal(m3/h)Primary motor (Kw)Dimension(mm)Weight(Kg)2204800~54002000~35003~50.4111600×1100×8507603004200~46003~150.811~152470×1230×85015003503700~42005~201.25~222790×1300×88020004003200~39005~30218.5~302950×1400×88026004503000~37005~452.522~373300×1500×92032005302700~345010~80530~553730×1600×11005200 /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
