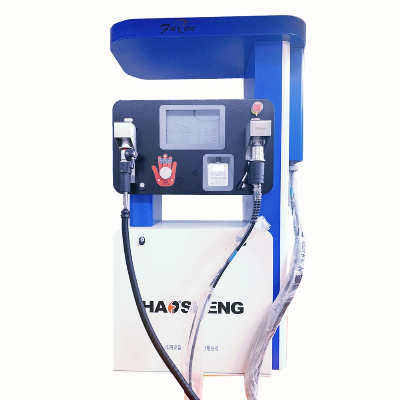

350Bar Hydrogen dispenserProducts DescriptionMain Features:(1)Technology accumulation:* Software and hardware R&D engineers.* Independent research and development and manufacture of hydrogenation machine control system, seamlessly docking with the pipesystem.* Independent research and development of hydrogen refueling station control system.(2) Precision manufacturing:* Modular independent design and manufacturing.* American swagelok training certification.* Imported precision machine tool/imported high precision electronic scale (800Kg). (3)* Use high-quality imported parts:* Coriolis Mass Flowmeter.* WEH hydrogenation gun.* Micro channel heat exchanger.* Valve fittings,etc. Product Paramenters 350Bar Hydrogen dispenser main technical parameterItemUnitRangeDescription Product / hydrogen Purity 99.99% Dimension mm ~1300×820×2380 L×W×H Weight kg ≤500 Inlet pressure MPa ≤45 Power kW 0.3 Voltage (AC) V 220,50Hz Refueling system Rated working pressure MPa 35 1Mpa=10Bar MWP MPa 43.8 1Mpa=10Bar 1Mpa=10Bar MPa 48.2 1Mpa=10Bar Range of charging pressure MPa 2-35 The hydrogen dispenser has the function of detecting the initial pressure of the vehicle cylinder. When the initial pressure of the vehicle is less than 2Mpa or more than 35Mpa, it is not allowed to fill Precooling / Equipped with tube heat exchanger and water chiller Flow range kg/min ≤3.6 Fill H2 15kgs within 10minutes Average rate kg/min ~2 Cooperate with the accumulator and cooling system Hose length m ≥4 Refueling port number PCS 2 Nozzle / WEH,TK16+TK25 Can not refuel at the same time Measure accuracy / ±2.5% Maximum indication error Minimum division value g 10 ex-proof grade / Exd e ib mb IIC T3/T4 Gb Details Images Certifications /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
