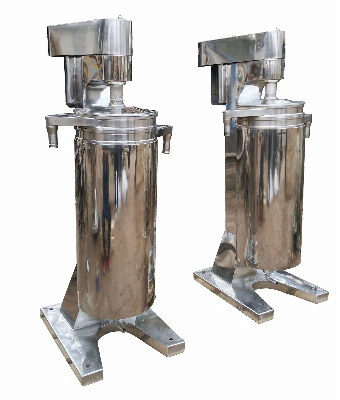

High Speed Tubular Centrifuge

Structure and principleThis separator is consisted of main body, driving device, bowl collecting pan and liquid-in bearing. The upper of the bowl is fiexible mainshaft and thelower of it is damp floating bearing. The mainshaft is connected through and with a buffer of connecting seat and a vdriven wheel. The driven wheel is driven by a motor through driving wheel and tension gear to make the bowl rotate around its own ax is at a extra speed and form a strong centrifuge force field. The stock flows into the liquid inlet from the bottom and is forced by centrifuge force to flow upto and along theinner wall of the bowl and then is separated the different layer according to density difference of the different liquid components. GQtype: Fine solid phase particles with great density are settled on the inner wall of the bowl gradually to form residne layer then to be discharged manually, after the machine stops. The liquid phase flows out of the liquid outlet at the bowl's upper after clarification.GFtype: Liquid phase with great density forms an outer loop and liquid phase with light density forms an inner loop, and flows to the upper of the bowl out of their respective liquid outlet. The little solid is settled on the inner wall of the bowl and then is discharged manually after the machine stops.GQtype: Fine solid phase particles with great density are settled on the inner wall of the bowl gradually to form residne layer then to be discharged manually, after the machine stops. The liquidTechnical parameters:  Item TypeGQ75GF75GQ105GFX105GFX150GQ150GF150BowlInner diameters(mm)7575105105142142142Effective height(mm)450450730730730730730Settling volume (L)2.672.6766101010Speed(r/min)20000200001900019000150001500015000Max Separation factors17800178002100021000180001800018000Nozzle diameters of fddeing inletmm3,5,73,5,74,6,84,6,86,8,106,8,106,8,10Pressure of feeding inlet(Mpa)>0.05Mpa>0.05Mpa>0.05Mpa>0.05Mpa>0.05Mpa>0.05Mpa>0.05MpaProduction capacity (kg/h)~670~670~1600-1400-3200~3200~3200Motor power(KW)1.51.52.03.03.03.03.0Outline dimensions(mm)500*700*1300500*700*1300600*1000*1600600*1000*1600600*1000*1600600*1000*1600600*1000*1600Machine weight(kg)300300450460590580590Cooler area(m2)0.380.381.41.41.41.41.4Bearing Pressure(Mpa)0.50.50.50.50.50.50.5FAQ Q1: Where can I get product & price information? A1: Send us inquiry or email directly, then we will contact you ASAP. Q2: How can I make sure your machinery is suitable for me?  A2: Please tell all the separation information you know, such as your raw liquid, two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you. Q3: What should I do if I want to see the separation effect? A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos. Q4: How to enjoy the OEM services? A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
