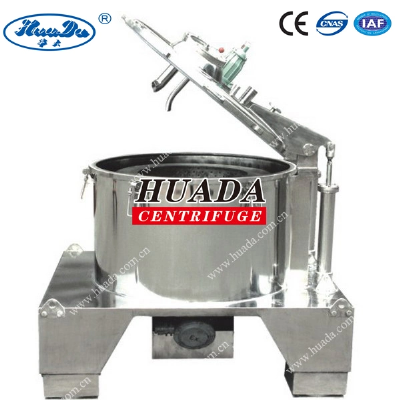

Pbz Small Manual Top Discharge Stainless Steel Basket Centrifugal Separator

PBZ Top Discharge Basket Centrifuge_____________________________________________________________________________________ Product Description Manual Top Discharge Centrifuge in Production Video:http://huada-centrifuge.en.made-in-china.com Once the materials to be separated enter the fast-spinning basket, it will be filtrated by the filter liner under the centrifugal force. The liquid flows out through the liquid outlet, but solids deposit on the internal wall of the basket. Once the solid cake reaches the rate capacity, feeding stops. Wash the solids cake, and then drain out the washing water. Finally stop the machine. The solid cake is discharged manually and move to next batch. Main features   Well-designed structure and polished surface leaves no residual heel. With big hinged cover, it is easy to clean the gap between the case and the basket. Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform. Big hinged cover, feeding pipe, washing pipe, observation glass and light. Automatic CIP system cleans the internal surface of the case, the basket and liquid slot to meet the clean requirement in accordance with GMP standards. Wide range of applications. No damage to the particle shape. Inverter start-up, smooth starting, adjustable relative centrifugal force. Tightness structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system (optional) is for anti-explosion applied to poisonous, flammable and explosive environment. Model PBZ centrifuge has applied direct shaft connected motor, which eliminates frictional dust from belt drive. In the meantime, the motor is installed at the bottom of the machine, which requires minimum installation space. Parameters Items Models PBZ300 PBZ450 PBZ600 PBZ800 PBZ1000 Basket Dia (mm) 300 450 600 800 1000 Basket Volume (L) 5 20 40 100 155 Max. Load (kg) 7 30 55 135 200 Max. Rotating speed (r/min) 2825 1900 1500 1200 1000 Centrifuge Force 1340 910 755 645 560 Motor (kW) 1.1 1.5 3 5.5 7.5 Dimension (L*W*H) (mm) 605*605*830 880*880*1000 1200*1050*1300 1500*1250*1400 1600*1400*1450 Weight (kg) 200 300 1100 1500 2000 Production site     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
