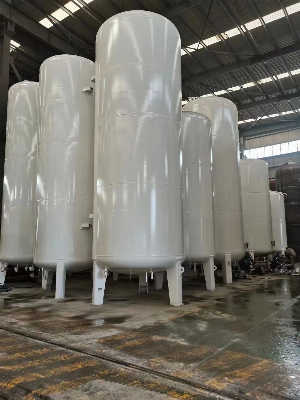

China 20m3 16bar Cryogenic Liquid Nitrogen Tank Hot Sell to Russia

Liquid Oxygen Nitrogen Storage ISO Cryogenic Tank  Model:1CC-TCS-20000/24                                     Insulation type:Multi layerNOItemsInner vesselOuter vessel1Design pressure     MPa2.4-0.1(outer)2Working pressure    MPa2.1-0.1(outer)3MAWP            MPa2.4/4Design temperature    ºC-40-19~505Working temperature   ºC≥-40normal6Pneumatic test      MPa2.4/7G. Vol              m320.115.13(interlayer)8E. Vol              m318.5/9MediumLCO2Multi layer10Main material16MnDr16MnDr11TreatmentSandingSanding and coating12Corrosion allowance  mm01.013Joint efficiency10.8514Filling rate92%/15Static evaporation   %/d/16Seal off vacuum degree Pa≤1×10-217Leakage of vacuum interspace  Pam3/s≤1×10-618ISO code22T719Diameter         mmΦ2200Φ240020External Dimensions  mm6058×2438×259121type    Horizontal22Tare weight           Kg~1230023Fully loading weight    Kg~2170024Design service life10years25Open pressure for safety valve2.55Mpa26Sort 27PaintingJotun28Thickness of coating    Um30029Shipment classification CCS30Portable tank guidelineT75About us:Our company is one of main factory in China Chemical Equipment Group, and as well as the biggest pressure vessel manufacturer in Zhejiang. Sep. Established in 1972 years, We're engaged in design and manufacture pressure vessel for more than 40 years, and have the Design License of Special Equipment (Pressure vessels of type , , ) (RSPZJHG0401-2), It has the following licenses issued by the State Administration of Quality Supervision, Inspection and Quarantine: A1, A2, B3, C2 and C3 pressure vessel manufacturing licenses; the design license for A1, A2, C2 and C3 pressure vessels; and the design license of GC1(3), GC2 and GC3 pressure pipingWe have passed ISO9001:2008 International Quality Supervision System Certification.  We own 170000 square meter building size The total assets is 180 million, has 500 workers and staff members, including 55 technician (6 super- engineer, 19 engineer, 10 primary technician, 1 super-technician, 4 technician, 15 Nondestructive Tester (RT, UT). There're 8 departments, such as technology, production, sales, quality, purchase, finance, secretary and standard, 1general management office, 1 international export office (Ningbo DSW), 5 workshops and 1 Installation Company. Set up the Welding Test station with Ningbo Bureau of Quality and Technical Supervision. Quality Guarantee System charged by quality engineer, design engineer, welding.Inspection guarantee:The relevant welding seams will be subject to 100% RT non-destructive testing and penetrant testing (PT) according to the technological requirements of storage tank production. High-purity nitrogen (up to 99.999%) will be used to conduct the strength testing. Finally, advanced helium mass spectrometer leak detectors (with precision up to 2×10-9Pa.L/s) will be used to conduct Helium mass spectrometer leak detection. The inner containers of the storage tanks will be passivated by overall pickling to meet the cleanliness requirements for dangerous goods. Imported ultraviolet black light lamps will be used to make sure that there is no oil stain and other organic impurities in the inner containers. The inner and outer containers, after cleaning, will be assembled at a time interval less than 2.5 hours. After assembling, the inner containers and interlayers will be filled with nitrogen to protect them from dust and organic impurities, so as to ensure the cleanliness. The inner and outer surfaces of the outer containers will be subject to overall sandblasting treatment to meet the requirements of Sa-2.5 standard. When the surfaces of steel plates show the metallic color, a vacuum cleaner will be used to suck off the dust adhered to the surface so as to further ensure the vacuum degree in the interlayer. Special high-quality perlite is used as the insulation material in the interlayer. The perlite will be treated by using our company's special process before being in the interlayer. All the internal cylinders, after manufactured, will be subject to the gas-tight and pressure performance tests. Both the internal and outer cylinders will be subject to rigorous Helium mass spectrum leak detection. After the production is completed, all the pipe openings will be opened to carry out nitrogen purging and replacement, so as to meet the oxygen usage standard. After this, all the pipelines and valves will be sealed and the tanks will be filled with 0.2MPa high-purity nitrogen for protecting the tanks.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
