Diesel and Gasoline Filling Petrol Station Equipment

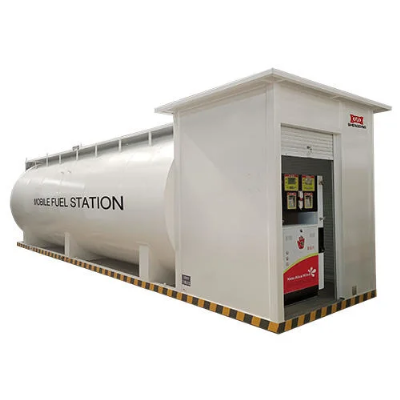

Products DescriptionCONTAINER FUEL STATIONThese fuel stations are suitable for petrol/diesel supply. The tank is manufactured with steel and has explosion-proofdesign. They can also be placed out in the open. The pumping and measuring kit are protected and reliable.CONFIGURATIONSTank compartment and pump compartmentFuel tankPumping kitManhole coverFuel dispenser: Accuracy : ± 1%Delivery hoseFEATURESChassis made of steelWeatherproofExplosion proofMechanical/digital options* Please contact us for a larger range of fuel stations.   SpecificationTotal volume 2,000-40,000 liters, and can be customized. S. No Description of configuration Specification 1 Explosion-proof storage tank Total volume 5m3-40m3. Tank steel Q235, submerged arc automatic welding process. 2 Lightning and static protection set With electrostatic grounding device 3 Explosion proof materials V-type explosion-proof material 4 Fuel dispenser Dispenser equipped with pump and filling gun 5 Fuel loading system Explosion proof fuel pump with flow rate of 38m3 / h 7 Liquid level measurement system Measuring range 0.5-3m, measuring error ± 1mm, with LCD, temperature monitoring function, high liquid level alarm and low liquid level alarm. 8 Airtight loading system DN80 self-sealing ring valve is adopted for quick connection of oil loading port. 9 Discharging system DN40 oil outlet pipe, equipped with maintenance protection device. 10 Emergency cut-off device DN40 emergency cut-off valve, normally closed, automatically cut off oil in case of fire or emergency. 11 Painting The equipment is polished, derusted and degreased. With external three coats of painting: 80 micron epoxy zinc rich primer, epoxy micaceous iron midcoat, polyurethane cooling and fireproof finish. 12 Other configuration Anti-static system Oil leakage detection device Manual oil measuring system Automatic fire extinguishing system Emergency pressure relief device Power supply system Anti-overflow system Lighting Filter unit Cleaning device Safety auxiliary facilities Door Our ServicePre-Sales Service* Inquiry and consulting support.* Sample testing support.* View our Factory.*More than 95% of the timely response rate, timely response to customer questionsAfter-Sales Service* Training how to install the tank, training how to use the filling station.* Engineers available to service equipment overseas.* Use online contact methods such as skype whatsapp wechat to provide online services to customers.Company IntroductionTaian Shengding Metal Container Manufacturing Co., Ltd, the professional oil tanks and mobile fuel stations manufacturer in China. Our products are widely used in storage system, refueling system, mining industry, energy industry and so on. We can offer you the high quality products with the competitive price. Our products have got ISO9001 certificate. Our main products are as follows: explosion-proof mobile fuel stations, oil storage tanks, underground storage tanks, vertical oil tanks, acid and alkali tanks, water treatment equipment, tank heads, boiler auxiliaries and other special tanks.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
